PTOs power auxiliary equipment from your truck engine via its gearbox. Choosing the right Iveco PTO combination ensures reliable hydraulic performance for tippers, cranes and walking floor systems throughout demanding operational cycles.
Identifying your Iveco gearbox type
Eurocargo models use different transmission types depending on their age and specification. Check your transmission identification plate on the right side of the gearbox casing for model information and compatible PTO mounting points.
ZF 6S series gearboxes accept direct-mount PTOs without additional drive shafts, making installation straightforward for workshop technicians.
Newer ZF AS Tronic automated transmissions require specific clutch-type variants with electronic management system integration.
Related: A spotlight on our truck hydraulics range
Specific Eurocargo PTO applications

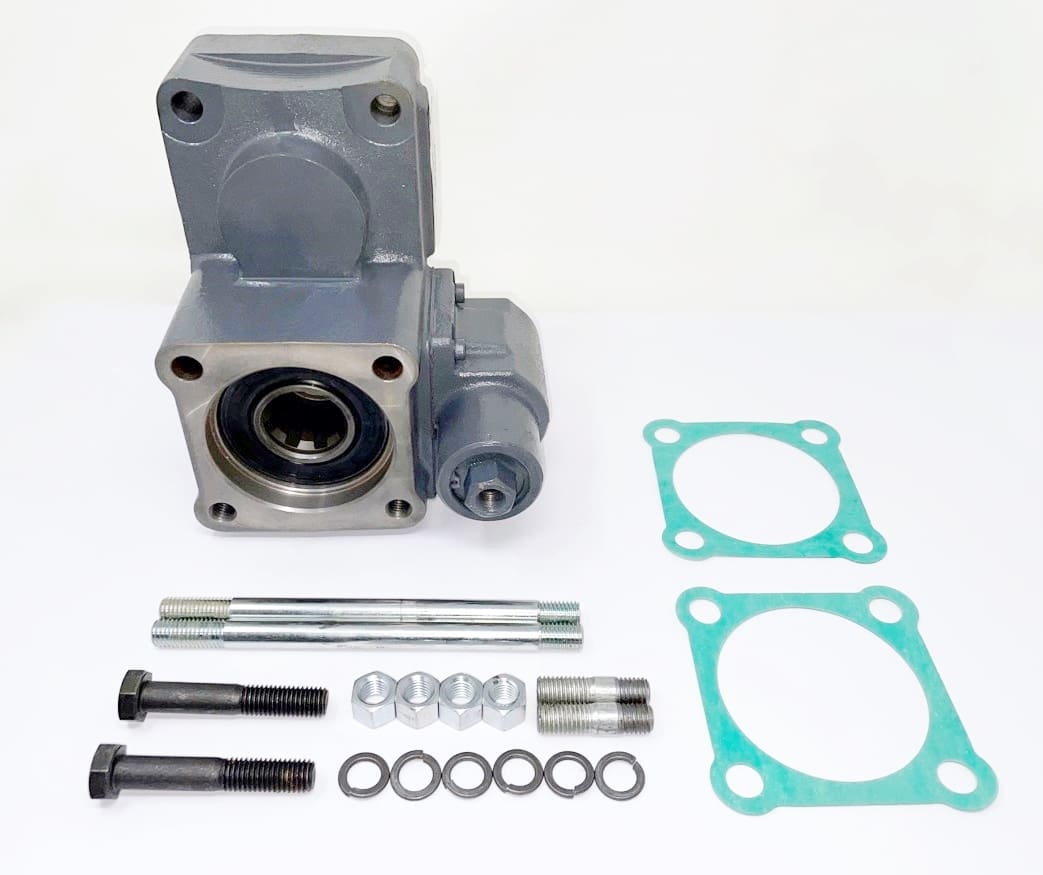

Medium-weight Eurocargo applications benefit from standard 1:1 ratio PTOs generating 479.5 Nm torque output. These units mount directly to ZF 6S 700 and ZF 6S 800 gearboxes without drive shafts, providing straightforward upgrade paths for existing vehicles.
Daily chassis cabs fitted with ZF transmissions accept similar PTO configurations but may require modified mounting brackets depending on chassis configuration. Verify underbody clearance before ordering to prevent installation complications during workshop fitting.
Stralis heavy-duty PTO requirements
Stralis models with ZF 12S and 16S transmissions need specific shaft dimensions matching internal gearbox configurations. ZF 12S 2330 gearboxes require 213mm quill shafts, while ZF 16S 181 models use identical shaft dimensions despite different internal gearing.
Automated ZF AS Tronic transmissions fitted to Euro 6 Stralis trucks benefit from twin-wheel clutch PTOs, which allow engagement while vehicles move at slow speeds. This feature proves invaluable for refuse collection vehicles making frequent stops.
Trakker off-road considerations
Trakker vehicles operating in demanding off-road environments experience increased vibration, which affects PTO connections. Reinforced mounting arrangements prevent premature wear of drive components under harsh conditions.
Higher-output 531 Nm clutch-type PTOs suit walking floor trailer operations commonly paired with Trakker tractor units. The sealed clutch design prevents dust and debris contamination during quarry and construction operations.
Matching PTO output to hydraulic requirements
Flow rate requirements determine suitable pump combinations for your PTO. Tipper operations with low cycle frequency work effectively with standard 27L pumps, while walking floor systems need 43L or larger pump capacities.
Confirmation switches provide dashboard indications of PTO engagement status through existing vehicle management systems. Connection points include industry-standard 1/4″ BSP air fittings suitable for workshop air hose quick-connectors during maintenance procedures.
Pump compatibility for Iveco PTOs
ZF transmission PTOs connect with standardised pump mounting patterns across the Iveco range. Most units accept 3-bolt UNI and 4-bolt ISO-configured hydraulic pumps, depending on the specific PTO variant.
Twin-wheel PTOs paired with bent-axis pumps deliver optimal performance for intensive applications. The matched components provide consistent hydraulic pressure throughout operational cycles, even under sustained load conditions.
