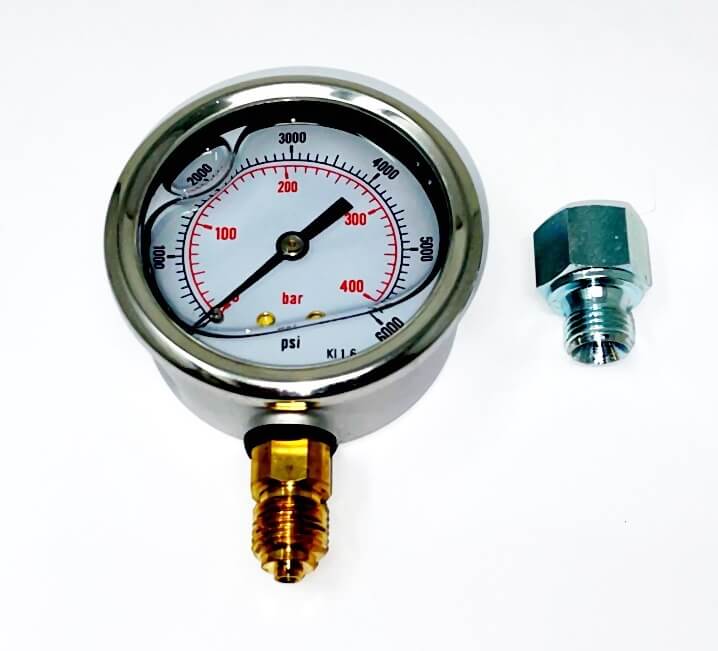

Oil Pressure Gauge 400 bar 1 ¼ “BSP 63mm Diameter Glycerine Filled

Description

Oil Pressure Gauge 400 bar 1 ¼ “BSP 63mm Diameter Glycerine Filled

For the measurement of fluid liquids that are not: – highly viscous, high temperature (over 60°C), likely to solidify/crystallize or corrosive to copper or tin alloys. Also suitable for gases (except oxidising gases such as oxygen or acetylene) up to 25 bar maximum.

Glycerine filled gauges are particularly suited to applications where oscillating/surging pressures or vibration are present. The damping effect of the glycerine will steady the pointer making it easier to take a reading against the scale.

• 63mm Face
• Includes 1 ¼ “ Gauge Adapter
• Glycerine Filled High Purity 99.5%
• Accuracy +/- 1.6% FSD
• IP 65 as per EN 60529
• Case and Crimped Bezel: 304 Stainless Steel
• Movement: High Precision Brass
• Window: Polycarbonate – Crystal clear
• Operating Temperature: Ambient: -20/+60ºC – Medium: +60ºC maximum.
• Temperature Effect: Variation in indication caused by temperature ± 0.04 x (t2 – t1)% of the span

• t1 is the reference ambient temperature in ºC
• t2 is the ambient temperature in ºC
