Hydraulic Wet Kit Walking Floor Mercedes Actros Arocs Euro 3 4 5 6
All items featuring this logo carry a 12 month repair or replace guarantee. Subject to our standard terms and conditions of sale.£2,400.00 Exc VAT
1 in stock
At M W Truck Parts Ltd, we stand behind the quality of every part we supply. If, within the applicable warranty period, a part develops a fault due to a manufacturing defect or pre-existing fault, we will inspect the item and, where the warranty applies, repair or replace it with an equivalent product.
Please note that all warranty claims are subject to inspection and assessment. Repair or replacement times may vary depending on the product and manufacturer.
Description
Hydraulic Wet Kit Walking Floor Mercedes Actros Arocs Euro 3 4 5 6
We supply single and twin line hydraulic walking floor system wet kits for most makes and models such as DAF, MAN, IVECO, RENAULT, SCANIA, AND VOLVO.
We offer wet kits to suit applications such as: Walking Floor Systems, Ejector Trailers and Walking Floor/Tipping combination kits. Please note that hydraulic hoses are not included in our kits but can be supplied along with a variety of other fittings as per customer requirements.

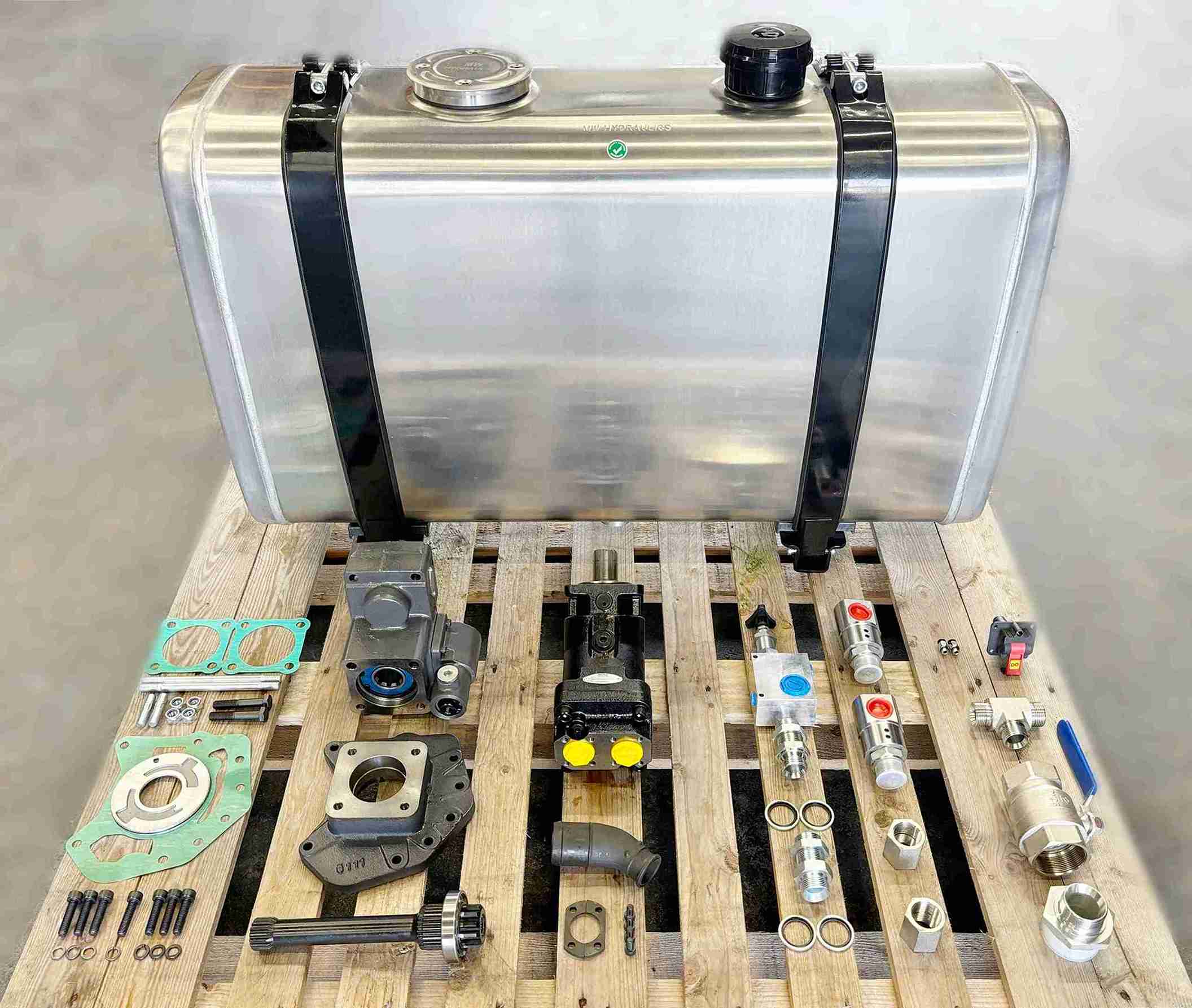

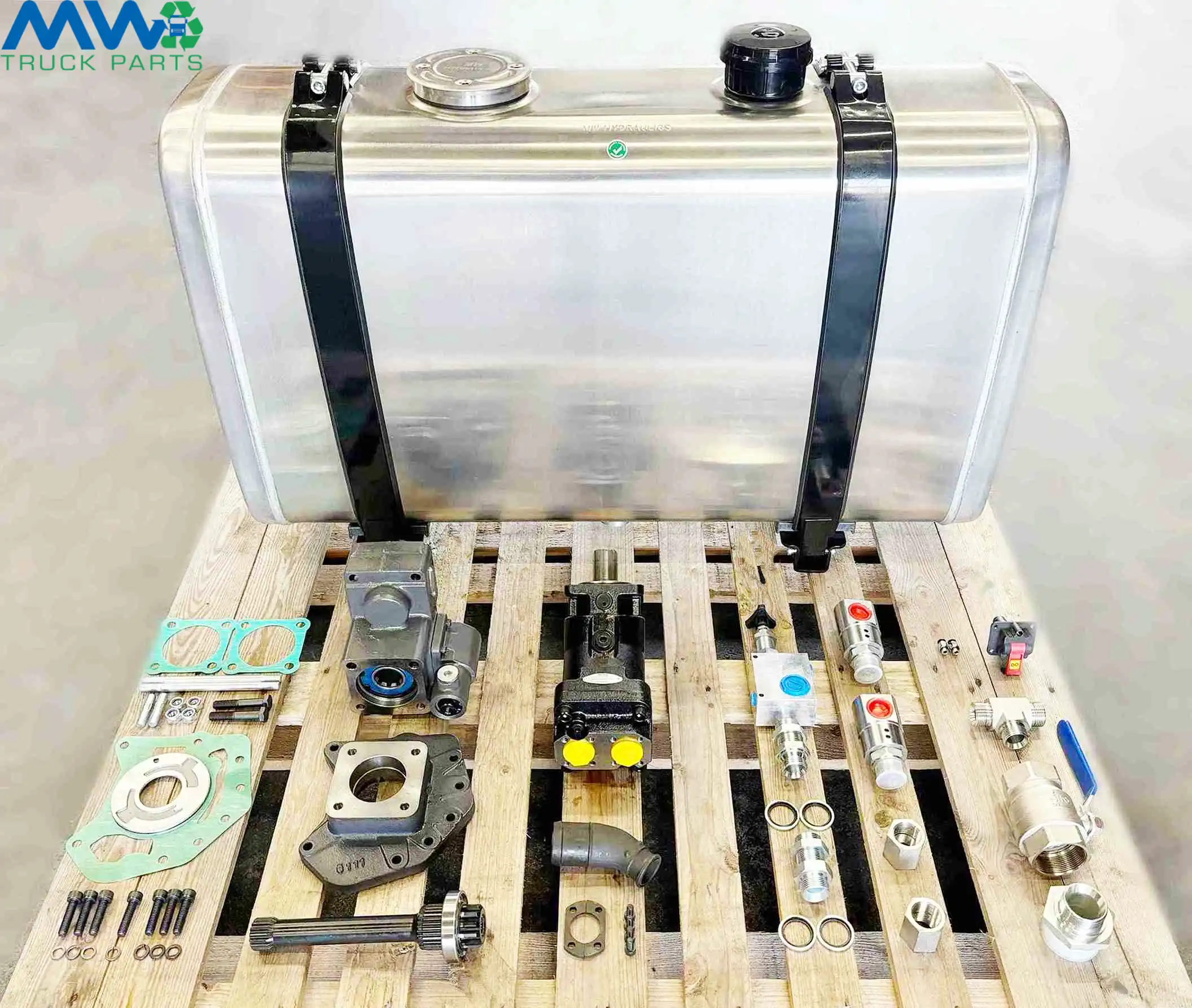

Hydraulic Wet Kit Walking Floor Mercedes Actros Arocs Euro 3 4 5 6 (Twin Line System)

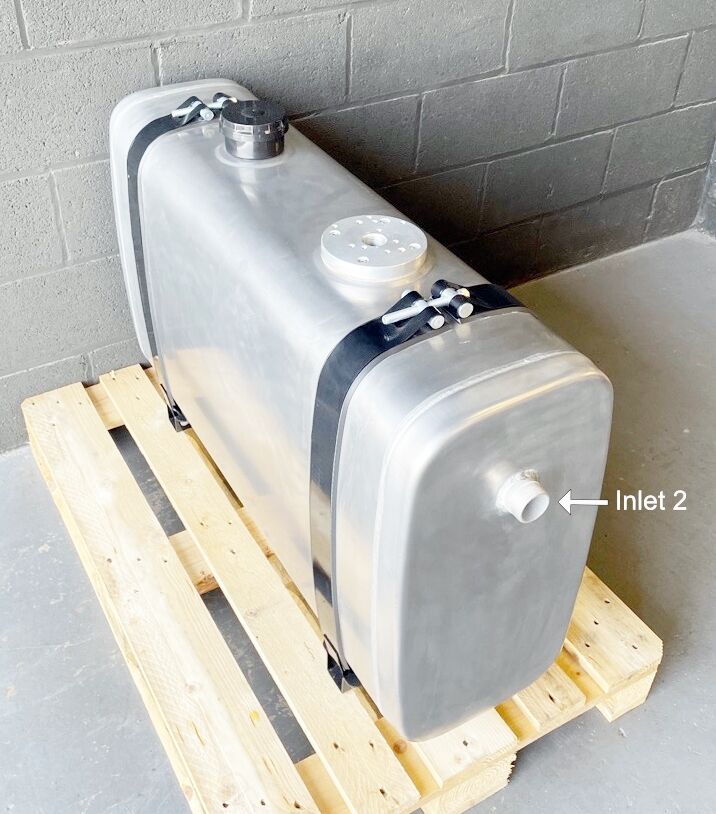

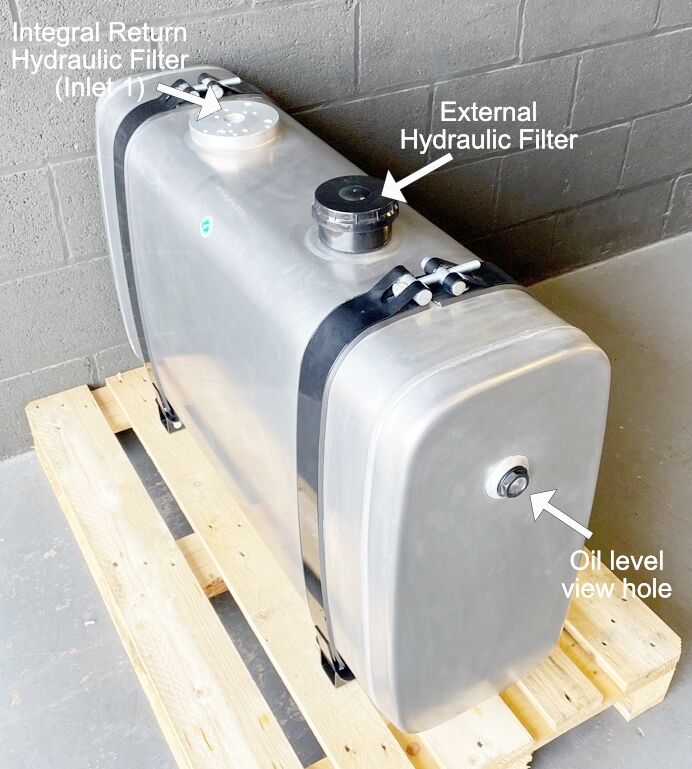

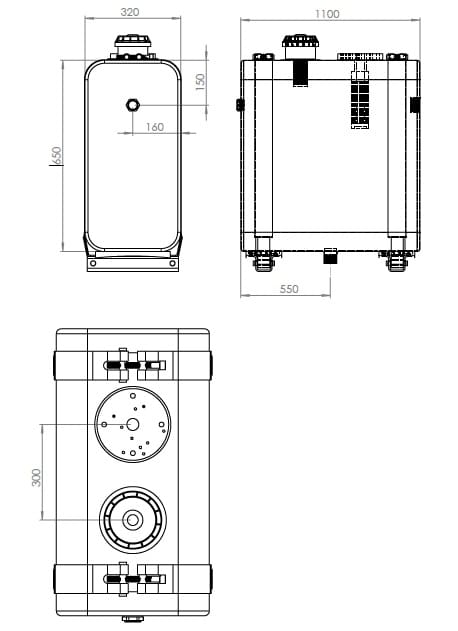

1 x 200 Litre Oil Tank Side Mounted Tractor Unit Type Twin Line Aluminium
- Return Line 1 Via Directional Valve Mounting Plate 1″ BSP F
- Return Line 2 Via Rear of Tank Upper Suction Adapter 1 ½” BSP M
- Pump Feed Via Rear of Tank Lower Suction Adapter 2″ BSP M
- Oil Level Indicator
- Brackets, Straps and Rubbers
- 25 Micron Internal Hydraulic Filter
- Filler Cap Breather Strainer Including Air Filter Element
- 38cm Width
- 75cm Height
- 75cm Depth
- Please note the dimensions above do not include the fixtures.
1 x Bent Axis Hydraulic Oil Piston Pump Bi-directional 108L including hose tails
- Displacement: 108 Litres/1000 RPM
- Working Pressure: 350 BAR
- Maximum Pressure: 400 BAR
- Continuous Speed: 1700 RPM
- Maximum Speed: 1900 RPM
- Inlet: 1″ BSP – Split flange with seal and screw
- Outlet: 1″ BSP
- Rotation: Bi-directional
- Weight: 16 KG
1 x Inline Pressure Relief Valve 1” BSP 50-380 Bar Variable
- Stainless Steel Construction
- Locking Nut
- Variable Pressure Setting
- Max Flow 100 L/min
- Test Port
- Inlet Port
- Outlet Port
- Tank Port
1 x Twin Wheel Clutch PTO including quill shaft (if applicable), adapter plate, gaskets fixtures and air line connector
- Mounting: Rear
- Control: Pneumatic
- Ratio: 1/1.2
- Torque: 531 Nm
PTO Air Switch Pneumatic 1 Way 1/8 BSP Including Air Line Connectors:
- Max Pressure: 10 Bar
- Min Pressure: 5 Bar
- Air Inlet: 1/8″ BSP
- Air Outlet 1/8″ BSP
Additional Parts & Fittings Included:
- 2 x Rotary Swivel Coupling Set 1“BSP 90 Degree
- 1 x DN50 Ball Valve 2″ BSP F/F
- 1 x 2″ BSP / 50mm M/M Insert
- 1 x 1 1/2″ BSP F Bush
- 1 x Reducing Adapter 1 1/2″ BSP to 1″ BSP M/M
- 1 x T Adapter 1″ BSP / 1″ BSP / 1″ BSP M/M/M
Compatible Gearboxes:
- G180-12 – G211-12 – G230-12 – G240-12 – G255-12 – G330-12
- G125-16 – G135-16 – G155-16 – G180-16 – G200-16 – G210-16 – G211-16 – G230-16 – G240-16 – G260-16 – G280-16
Compatible Truck Models:
- Mercedes Actros Euro 4, 5, 6
- Mercedes Arocs Euro 5, 6
*Notice* We advise all customers to use and seek advice from qualified engineers before installing this wet kit. M W Truck Parts LTD does not accept any responsibly or liability for damage caused due to the improper installation of our goods. This kit can be used along with a dealer fitted PTO switch and programming.
Additional information
| Weight | 300 kg |
|---|---|
| Dimensions | 120 × 100 × 120 cm |
| Features |
Brand Information
- Mercedes Benz
