Hydraulic Wet Kit Tipping Trailer Mercedes Actros Arocs Antos Euro 4 5 6

Description

We supply single and twin line hydraulic walking floor system wet kits for most makes and models such as DAF, MAN, IVECO, RENAULT, SCANIA, AND VOLVO.

We offer wet kits to suit applications such as: Walking Floor Systems, Ejector Trailers and Walking Floor/Tipping combination kits. Please note that hydraulic hoses are not included in our kits but can be supplied along with a variety of other fittings as per customer requirements.

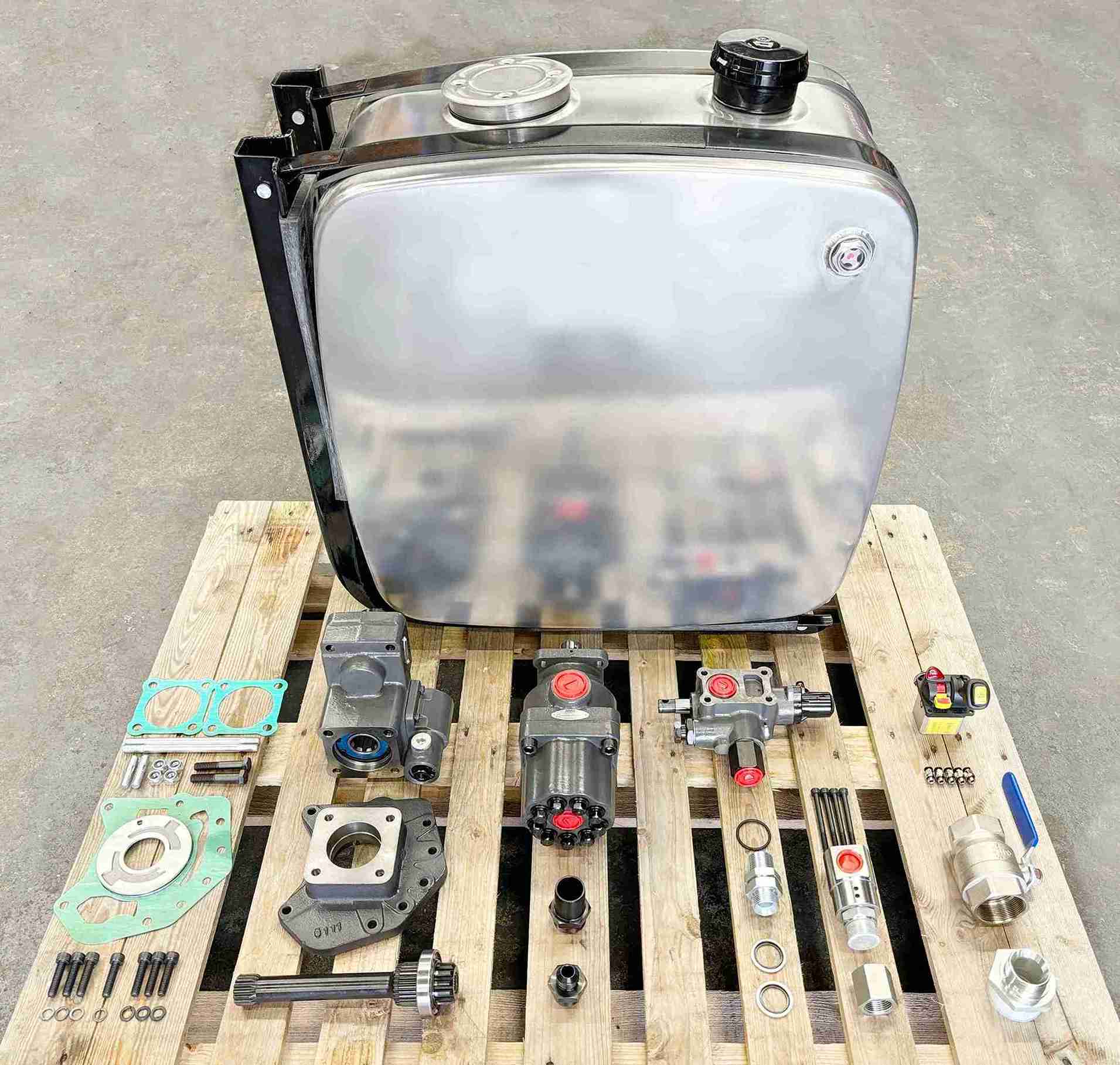

Hydraulic Wet Kit Tipping Trailer Mercedes Actros Arocs Antos Euro 4 5 6 (Twin Line System)

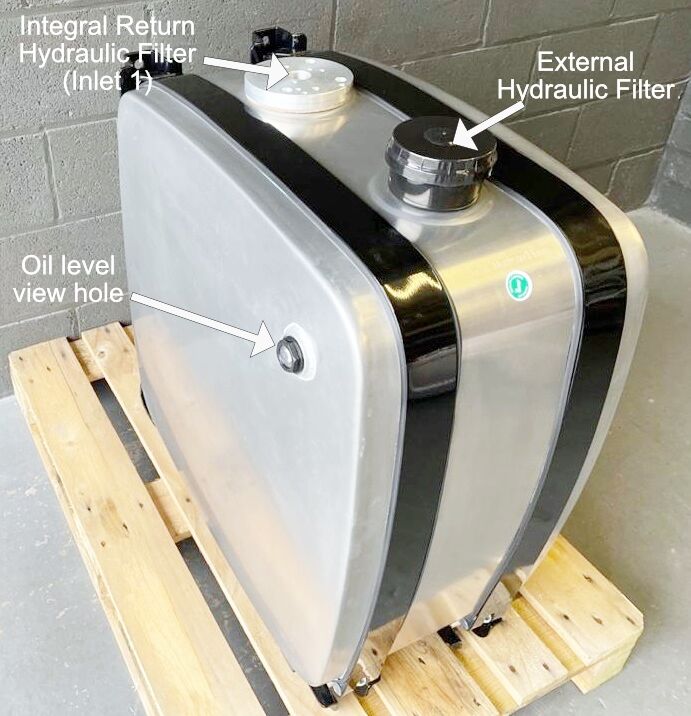

1 x 200 Litre Oil Tank Side Mounted Tractor Unit Type Twin Line Aluminium

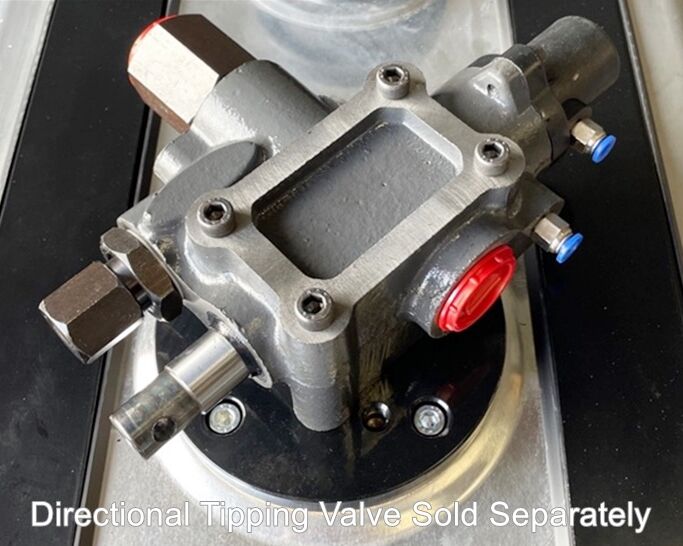

• Return Line 1 Via Directional Valve Mounting Plate 1″ BSP F

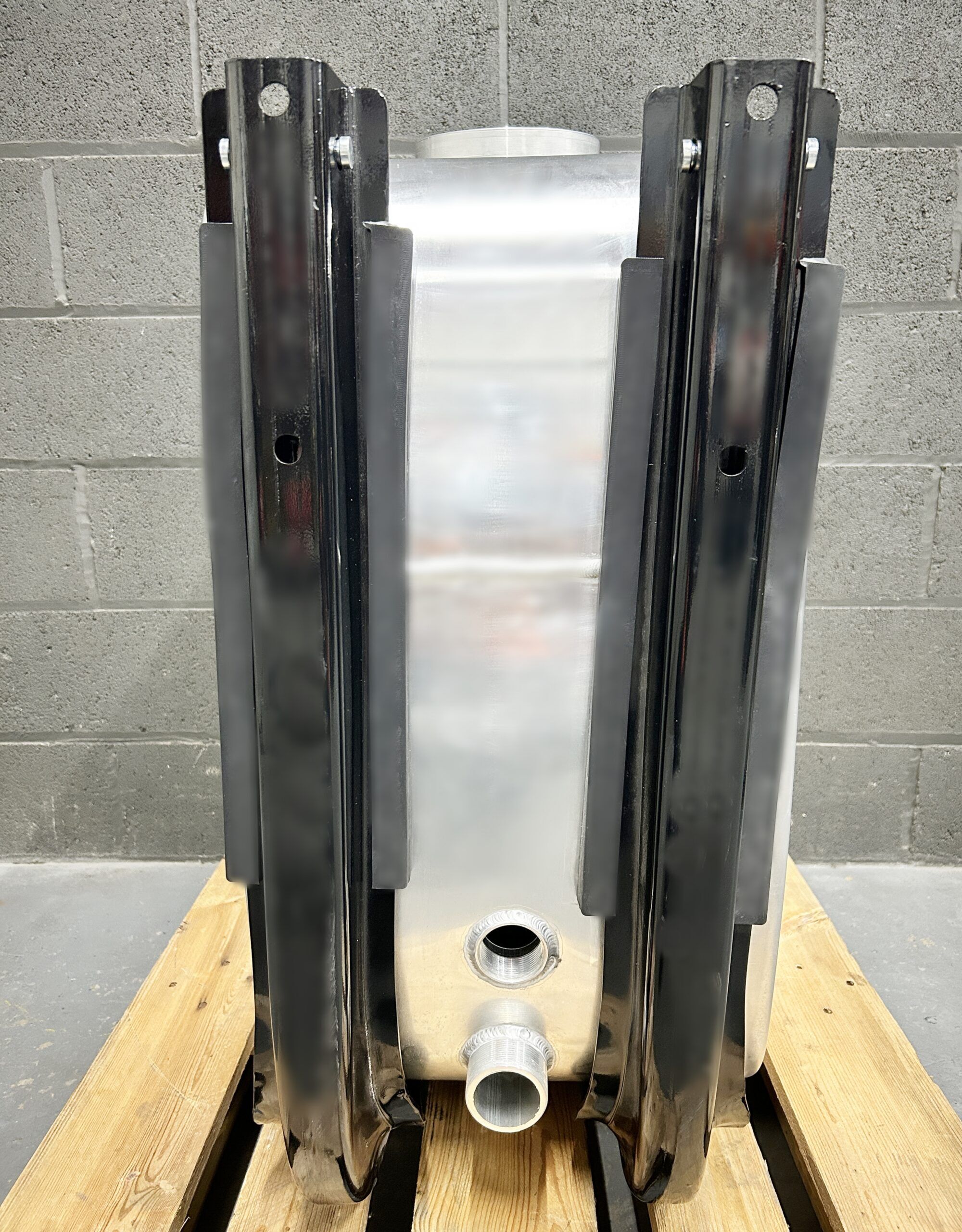

• Return Line 2 Via Rear of Tank Upper Suction Adapter 1 ½” BSP F
• Pump Feed Via Rear of Tank Lower Suction Adapter 2″ BSP M
• Oil Level Indicator
• Brackets, Straps and Rubbers
• 25 Micron Internal Hydraulic Filter
• Filler Cap Breather Strainer Including Air Filter Element

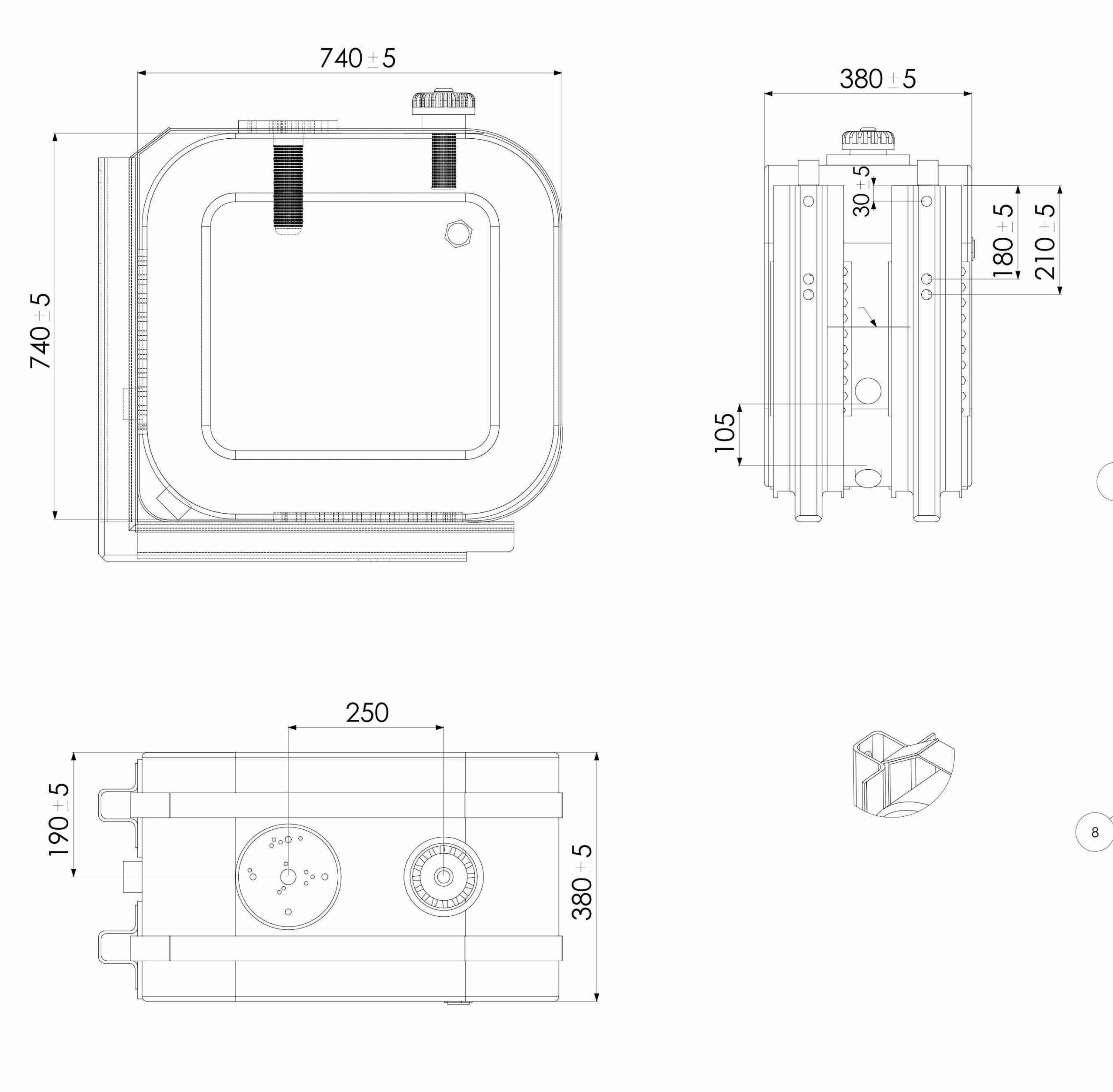

• 38cm Width
• 75cm Height
• 75cm Depth
• Please note the dimensions above do not include the fixtures.

1 x Bent Axis Hydraulic Oil Piston Pump Bi-directional 108L including hose tails

• Displacement: 108 Litres/1000 RPM
• Working Pressure: 350 BAR
• Maximum Pressure: 400 BAR
• Continuous Speed: 1700 RPM
• Maximum Speed: 1900 RPM
• Inlet: 1″  BSP – Split flange with seal and screw
• Outlet: 1″ BSP
• Rotation: Bi-directional
• Weight: 16 KG

1 x Inline Pressure Relief Valve 1” BSP 50-380 Bar Variable

• Stainless Steel Construction
• Locking Nut
• Variable Pressure Setting
• Max Flow 100 L/min
• Test Port
• Inlet Port
• Outlet Port
• Tank Port

1 x Twin Wheel Clutch PTO including quill shaft, adapter plate, gaskets and fixtures including air line connector

• Mounting: Rear
• Control: Pneumatic
• Ratio: 1/1
• Torque: 531 Nm

1 x Tipping Cab Controller (With PTO Switch) including air line connectors

• Max Pressure: 10 Bar
• Min Pressure: 5 Bar
• PTO Port: 1/8″ BSP
• Air Inlet: 1/8″ BSP
• Air Exhaust: 1/8″ BSP
• Tipping Port: 1/8″ BSP
• Lowering Port: 1/8″ BSP
• Supply: 24v

Additional Parts & Fittings Included:

• 1 x Rotary Swivel Coupling Set 1“BSP 90 Degree
• 1 x DN50 Ball Valve 2″ BSP F/F
• 1 x Reducing Adapter 2″ BSP to 1 1/2″ BSP M/M

Compatible Gearboxes:

• G180-12 – G211-12 – G230-12 – G240-12 – G255-12 – G330-12
• G125-16 – G135-16 – G155-16 – G180-16 – G200-16 – G210-16 – G211-16 – G230-16 – G240-16 – G260-16 – G280-16

Compatible Truck Models:

• Mercedes Actros Euro 4, 5, 6
• Mercedes Arocs Euro 5, 6
• Mercedes Antos Euro 5, 6

*Notice* We advise all customers to use and seek advice from qualified engineers before installing this wet kit. M W Truck Parts LTD does not accept any responsibly or liability for damage caused due to the improper installation of our goods. This kit can be used along with a dealer fitted PTO switch and programming.
