Hydraulic Wet Kit Tipping Trailer Volvo FH FM Renault DXI T Range Euro 4 5 6

Description

We supply single and twin line hydraulic wet kits for most makes and models such as DAF, MAN, IVECO, RENAULT, SCANIA, AND VOLVO.

We offer wet kits to suit applications such as: Walking Floor Systems, Ejector Trailers and Walking Floor/Tipping combination kits. Please note that hydraulic hoses are not included in our kits but can be supplied along with a variety of other fittings as per customer requirements.

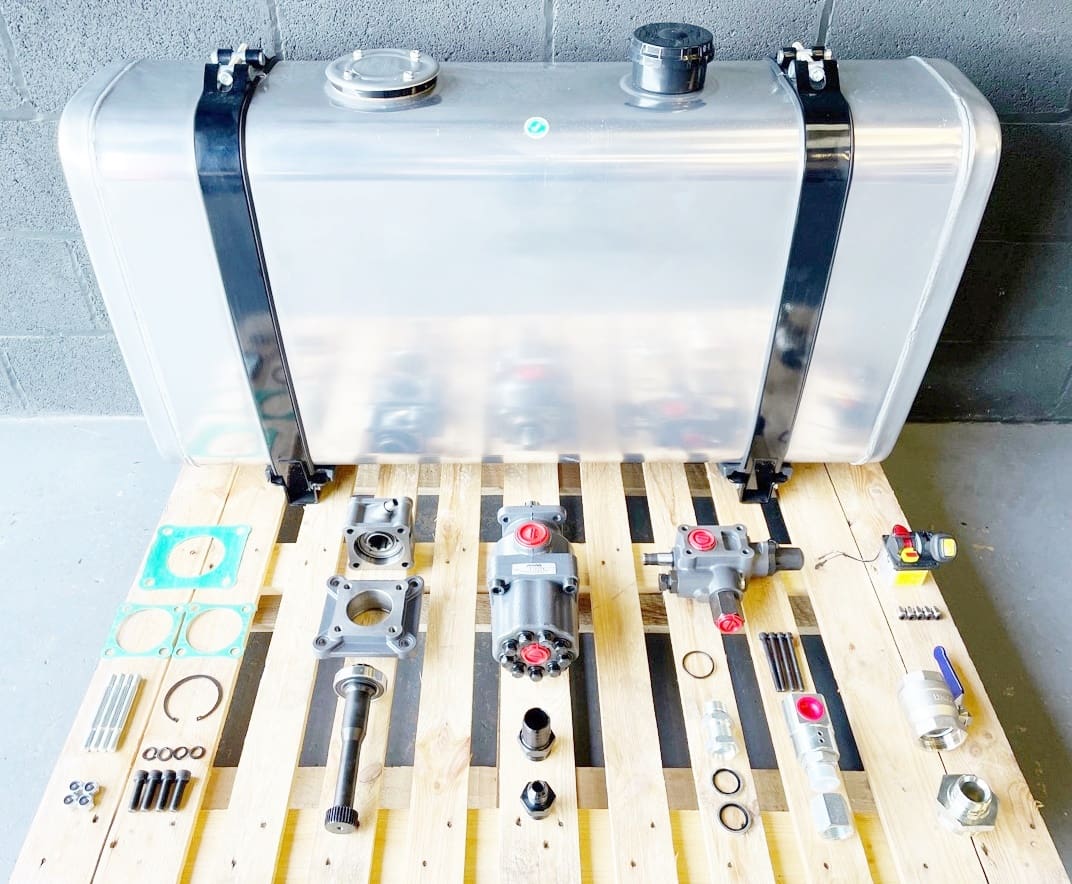

Hydraulic Wet Kit Tipping Trailer Volvo FH FM Renault DXI T Range Euro 4 5 6 (Single Line System)

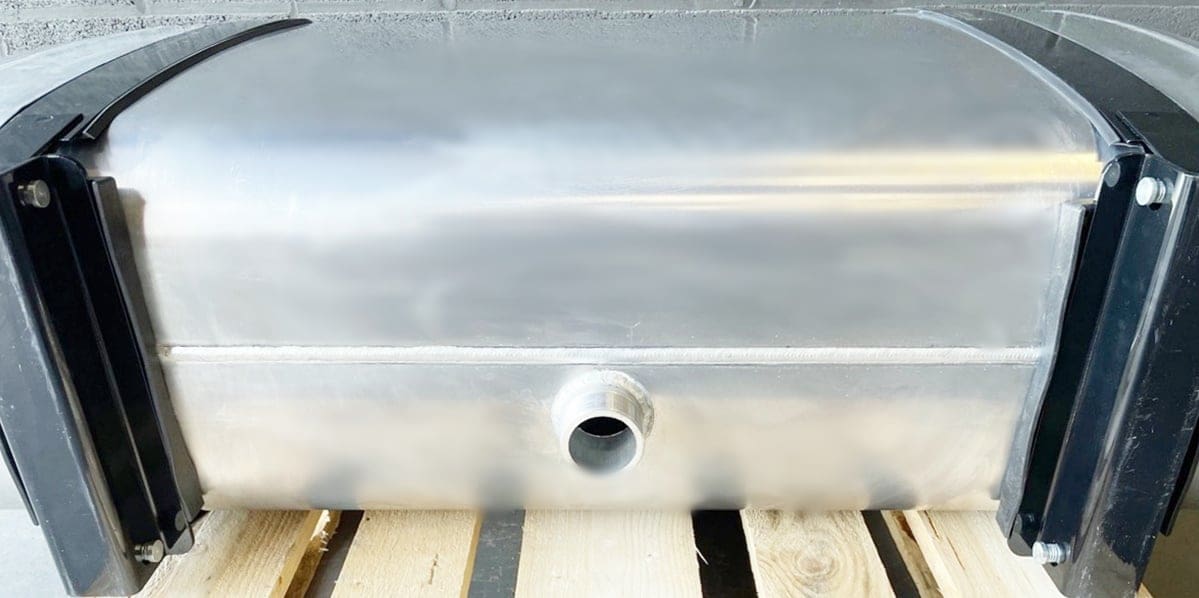

1 x 190 Litre Oil Tank Rear Cabin Mounted Twin Line Aluminium

• Return Line 1 Via Directional Valve Mounting Plate 1″ BSP F

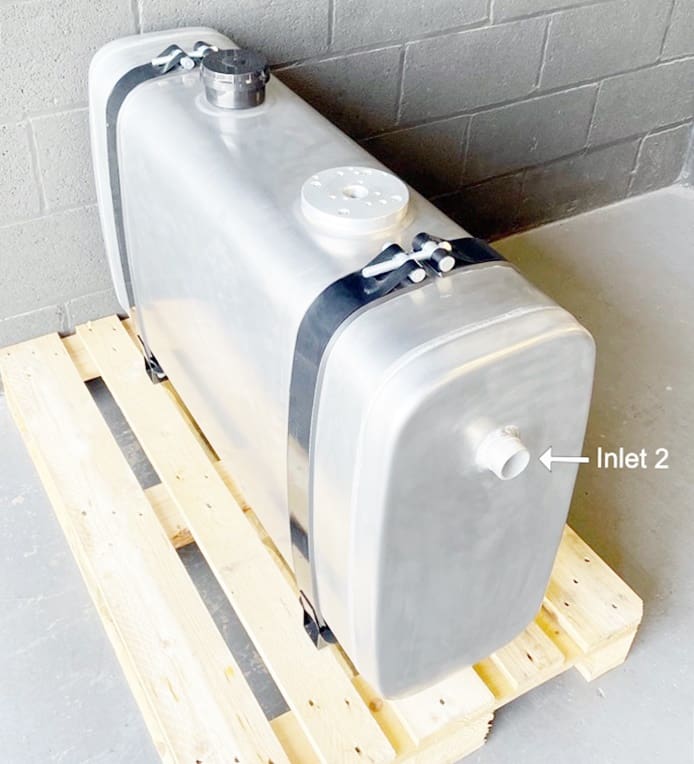

• Return Line 2 Via Side of Tank Upper Suction Adapter 1 ½” BSP M
• Pump Feed Via Bottom of Tank Lower Suction Adapter 2″ BSP M
• Oil Level Indicator
• Brackets, Straps and Rubbers
• 25 Micron Internal Hydraulic Filter
• Filler Cap Breather Strainer Including Air Filter Element

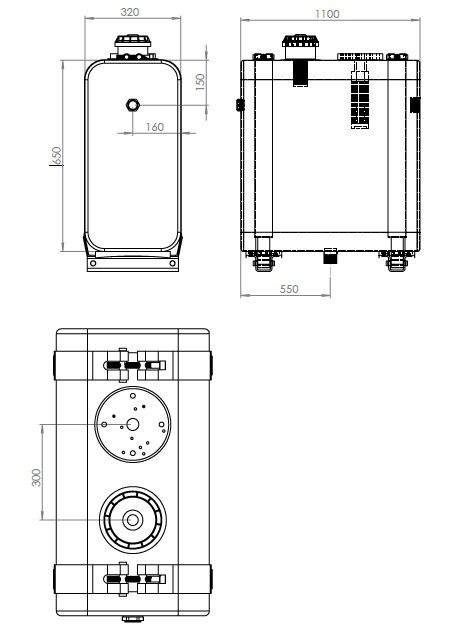

• 110cm Width
• 65cm Height
• 32cm Depth
• Please note the dimensions above do not include the fixtures.

1 x High pressure, bi-directional, 9 piston pump including hose tails

• Displacement: 85L/1000 RPM
• Working Pressure: 250 BAR
• Maximum Pressure: 350 BAR
• Maximum Speed: 1300 RPM
• Inlet: 1″ 1/4 BSP
• Outlet: 1″ BSP
• Pump Rotation: BI-DIRECTIONAL

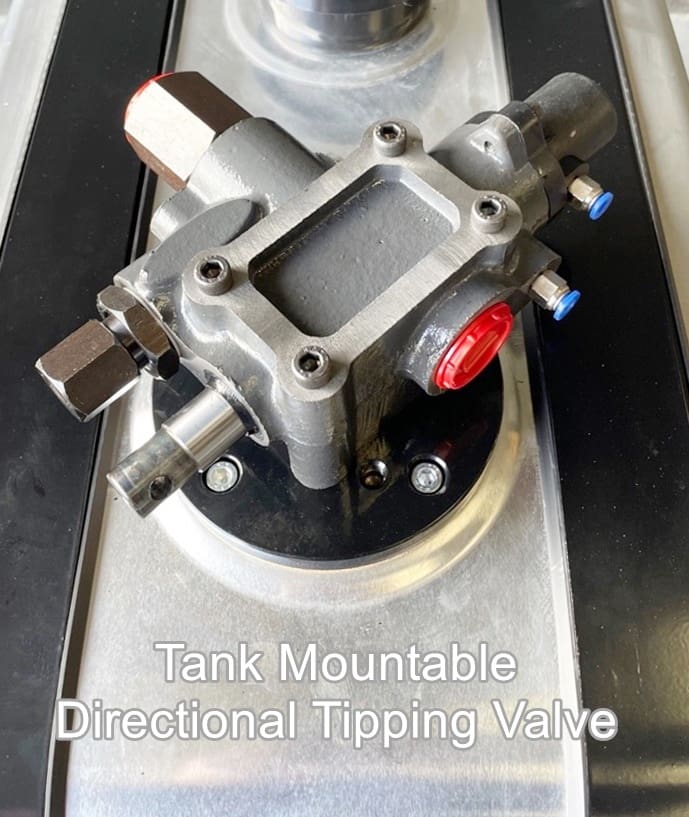

1 x Directional tipping valve 1″ normally closed (NC) including air line connectors

• Displacement: 140 L/1000 RPM
• Working Pressure: 180 BAR
• Maximum Pressure: 230 BAR
• Pump to Valve: 1″ BSP F
• Valve to Tank: 1″ BSP F
• Valve to Cylinders: 1″ BSP F

1 x PTO block including quill shaft, adapter plate, gaskets and fixtures including air line connector

• Mounting: Rear
• Control: Pneumatic
• Ratio: 1/1
• Torque: 245 Nm

1 x Tipping Cab Controller (With PTO Switch) including air line connectors

• Max Pressure: 10 Bar
• Min Pressure: 5 Bar
• PTO Port: 1/8″ BSP
• Air Inlet: 1/8″ BSP
• Air Exhaust: 1/8″ BSP
• Tipping Port: 1/8″ BSP
• Lowering Port: 1/8″ BSP
• Supply: 24v

Additional Parts & Fittings Included:

• 1 x Rotary Swivel Coupling Set 1“BSP 90 Degree
• 1 x DN50 Ball Valve 2″ BSP F/F
• 1 x 2″ BSP / 38mm M/M Insert
• 1 x Adapter 2″ BSP to 1 1/2″ BSP M/M Adapter

Compatible Gearboxes:

• AT2412 C I-Shift
• AT2412 D I-Shift
• AT2512 E I-Shift
• AT2612 D I-Shift
• AT2612 E I-Shift

Compatible Truck Models:

• Volvo FH/FM13 Euro 4 (Version 2)
• Volvo FH/FM13 Euro 5 (Version 3)
• Volvo FH/FM13 Euro 6 (Version 4)
• Renault Premium DXI Euro 4
• Renault Premium DXI Euro 5
• Renault Premium T Range Euro 6

*Notice* We advise all customers to use and seek advice from qualified engineers before installing this wet kit. M W Truck Parts LTD does not accept any responsibly or liability for damage caused due to the improper installation of our goods. This kit can be used along with a dealer fitted PTO switch and programming.
