Hydraulic Wet Kit Tipping IVECO S WAY STRALIS MAN TGA TGX DAF CF XF Euro 3 4 5 6

Description

Hydraulic Wet Kit Tipping Trailer IVECO S WAY MAN TGA TGX DAF CF XF Euro 6 Rear Tank

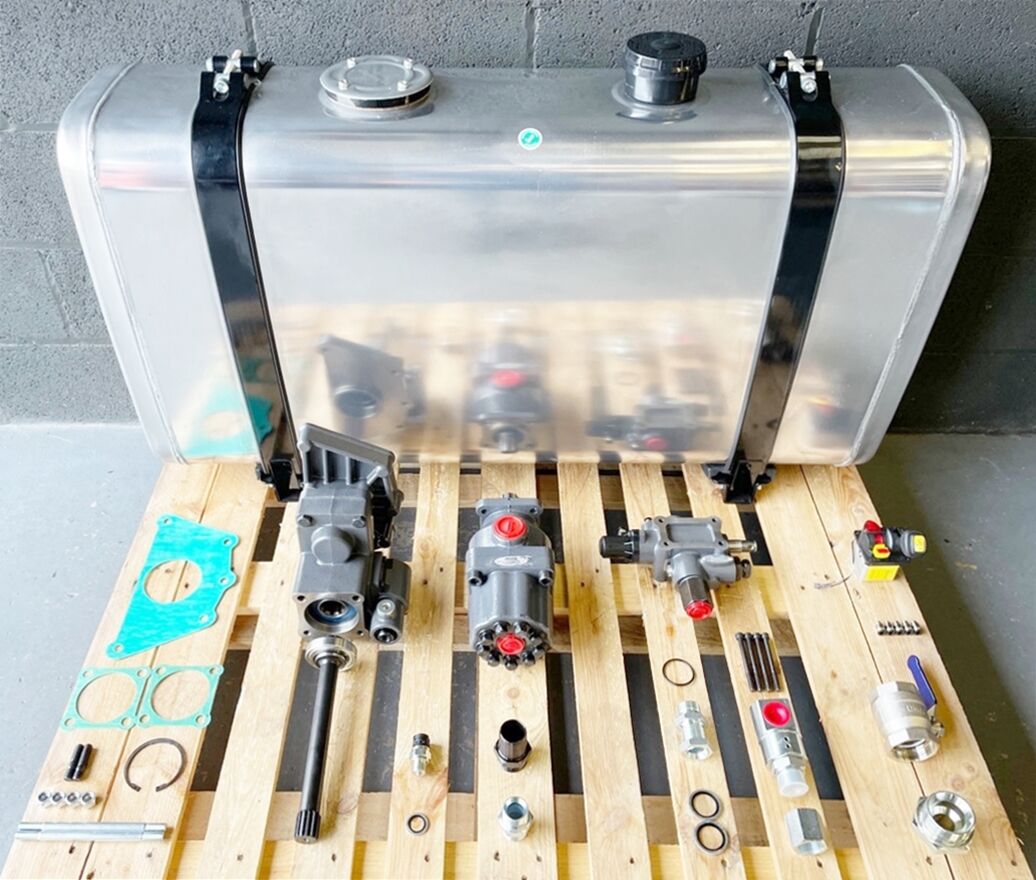

We supply single and twin line hydraulic wet kits for most makes and models such as DAF, MAN, IVECO, RENAULT, SCANIA, AND VOLVO.

We offer wet kits to suit applications such as: Walking Floor Systems, Ejector Trailers and Walking Floor/Tipping combination kits. Please note that hydraulic hoses are not included in our kits but can be supplied along with a variety of other fittings as per customer requirements.

Hydraulic Wet Kit Tipping Trailer IVECO S WAY MAN TGA TGX DAF CF XF Euro 6 (Single Line System)

1 x 190 Litre Oil Tank Rear Cabin Mounted Twin Line Aluminium

• Return Line 1 Via Directional Valve Mounting Plate 1″ BSP F
• Return Line 2 Via Side of Tank Upper Suction Adapter 1 ½” BSP M

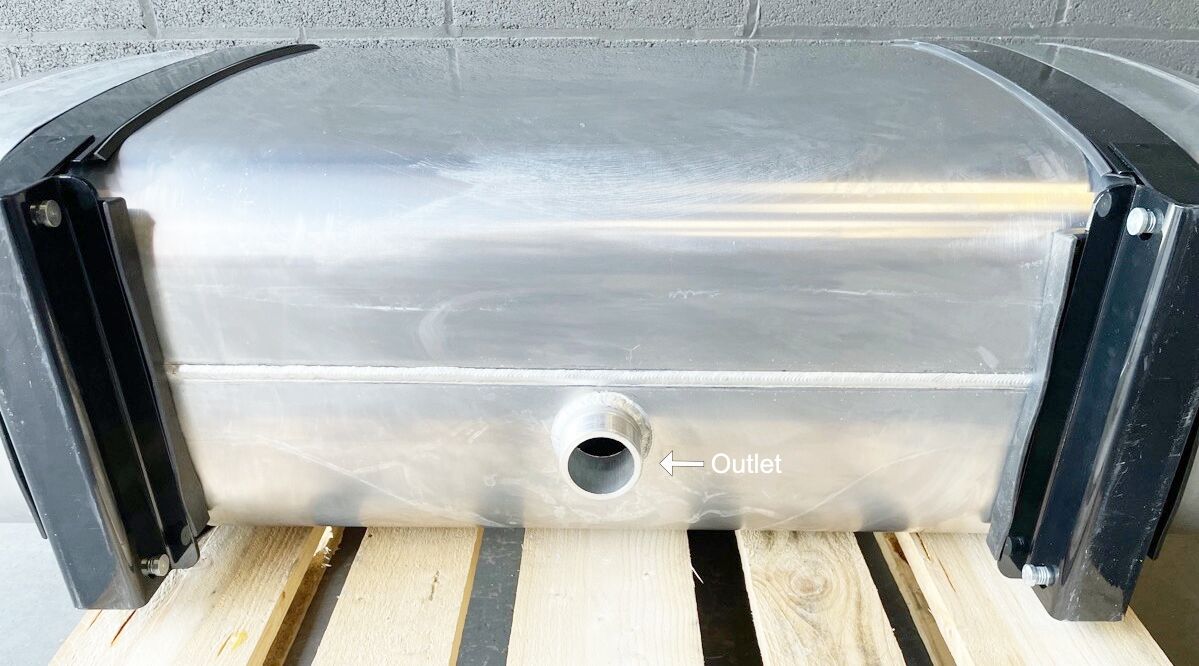

• Pump Feed Via Bottom of Tank Lower Suction Adapter 2″ BSP M
• Oil Level Indicator
• Brackets, Straps and Rubbers
• 25 Micron Internal Hydraulic Filter
• Filler Cap Breather Strainer Including Air Filter Element

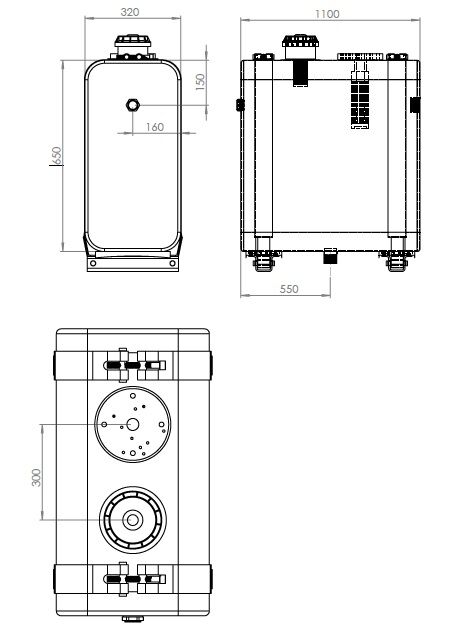

• 110cm Width
• 65cm Height
• 32cm Depth
• Please note the dimensions above do not include the fixtures.

1 x High pressure, bi-directional, 9 piston pump including hose tails

• Displacement: 85L/1000 RPM
• Working Pressure: 250 BAR
• Maximum Pressure: 350 BAR
• Maximum Speed: 1300 RPM
• Inlet: 1″ 1/4 BSP
• Outlet: 1″ BSP
• Pump Rotation: BI-DIRECTIONAL

1 x Directional tipping valve 1″ normally closed (NC) including air line connectors

• Displacement: 140 L/1000 RPM
• Working Pressure: 180 BAR
• Maximum Pressure: 230 BAR
• Pump to Valve: 1″ BSP F
• Valve to Tank: 1″ BSP F
• Valve to Cylinders: 1″ BSP F

1 x Clutch PTO with confirmation switch including quill shaft & adapter plate (if required), gaskets and fixtures including air line connector

• Mounting: Rear
• Switch Port Including Confirmation Switch
• Control: Pneumatic
• Ratio: 1/1
• Torque: 531 Nm

1 x Tipping Cab Controller With PTO Switch Including Bracket 24v LED

• Max Pressure: 10 Bar
• Min Pressure: 5 Bar
• PTO Port: 1/8″ BSP
• Air Inlet: 1/8″ BSP
• Air Exhaust: 1/8″ BSP
• Tipping Port: 1/8″ BSP
• Lowering Port: 1/8″ BSP
• Supply: 24v

Additional Parts & Fittings Included:

• 1 x Rotary Swivel Coupling Set 1“BSP 90 Degree
• 1 x DN50 Ball Valve 2″ BSP F/F
• 1 x Adapter 2″ BSP to 1 1/2″ BSP M/M Adapter

Compatible Gearboxes:

ZF AS Tronic 2005-2016

• ZF 12 AS 2130 TD Automatic Gearbox (270mm Shaft)
• ZF 12 AS 2301  Automatic Gearbox (248mm Shaft)
• ZF 12 AS 2310 Automatic Gearbox (248mm Shaft)
• ZF 12 AS 2330 TD Automatic Gearbox (248mm Shaft)
• ZF 12 AS 2540 TD Automatic Gearbox (248mm Shaft)

ZF Traxon 2017/18 +

• 12TX-1410TD-16.69-1.0
• 12TX-1610TD-16.69-1.0
• 12TX-1610TO-12.92-0.77
• 12TX-1810TD-16.69-1.0
• 12TX-1810TO-12.92-0.77
• 12TX-2010TD-16.69-1.0
• 12TX-2010TO-12.92-0.77
• 12TX-2210TD-16.69-1.0
• 12TX-2210TO-12.92-0.77
• 12TX-2420TD-16.69-1.0
• 12TX-2610TO-12.92-0.77
• 12TX-2620TD-16.69-1.0
• 12TX-2820TD-16.69-1.0
• 12TX-2820TO-12.92-0.77
• 12TX-3020TO-12.92-0.77
• 12TX-3220TO-12.92-0.77
• 12TX-3420TO-12.92-0.77
• 16TX-1640TD-17.94-1.0
• 16TX-1840TD-17.94-1.0
• 16TX-1840TO-14.68-0.82
• 16TX-2040TD-17.94-1.0
• 16TX-2040TO-14.68-0.82
• 16TX-2240TD-17.94-1.0
• 16TX-2240TO-14.68-0.82
• 16TX-2440TD-17.94-1.0
• 16TX-2440TO-14.68-0.82
• 16TX-2640TD-17.94-1.0
• 16TX-2640TO-14.68-0.82
• 16TX-2840TD-17.94-1.0
• 16TX-2840TO-14.68-0.82
• 16TX-3040TO-14.68-0.82
• 16TX-3240TO-14.68-0.82
• 16TX-3440TO-14.68-0.82
• 16TX-2410TO / 12.92-0.77

Compatible Truck Models:

• DAF CF / XF / XG EURO 4, 5, 6
• MAN TGS / TGA / TGX EURO 4, 5, 6
• IVECO STRALIS / S WAY EURO 4, 5, 6

*Notice* We advise all customers to use and seek advice from qualified engineers before installing this wet kit. M W Truck Parts LTD does not accept any responsibly or liability for damage caused due to the improper installation of our goods. This kit can be used along with a dealer fitted PTO switch and programming.
