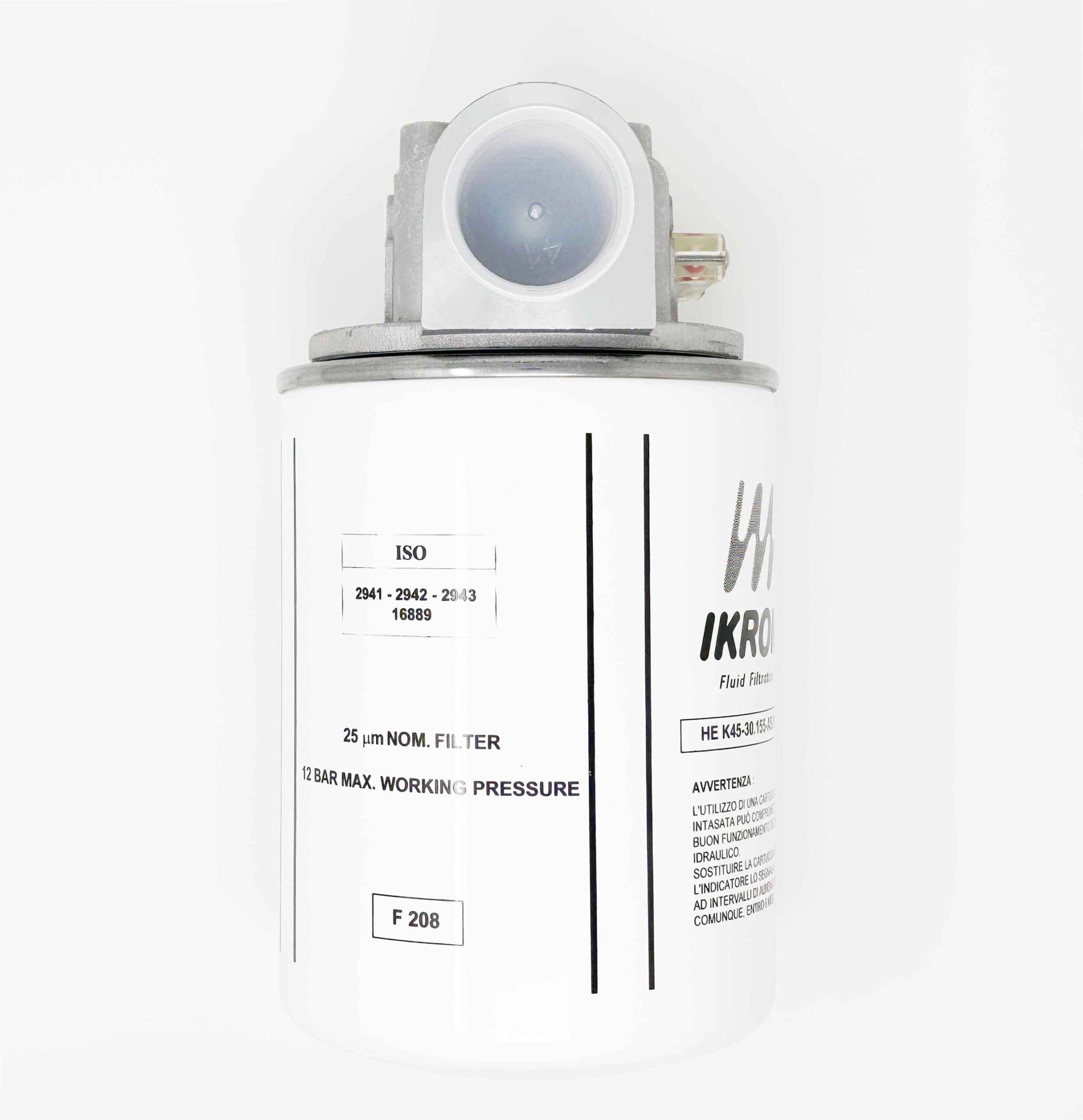

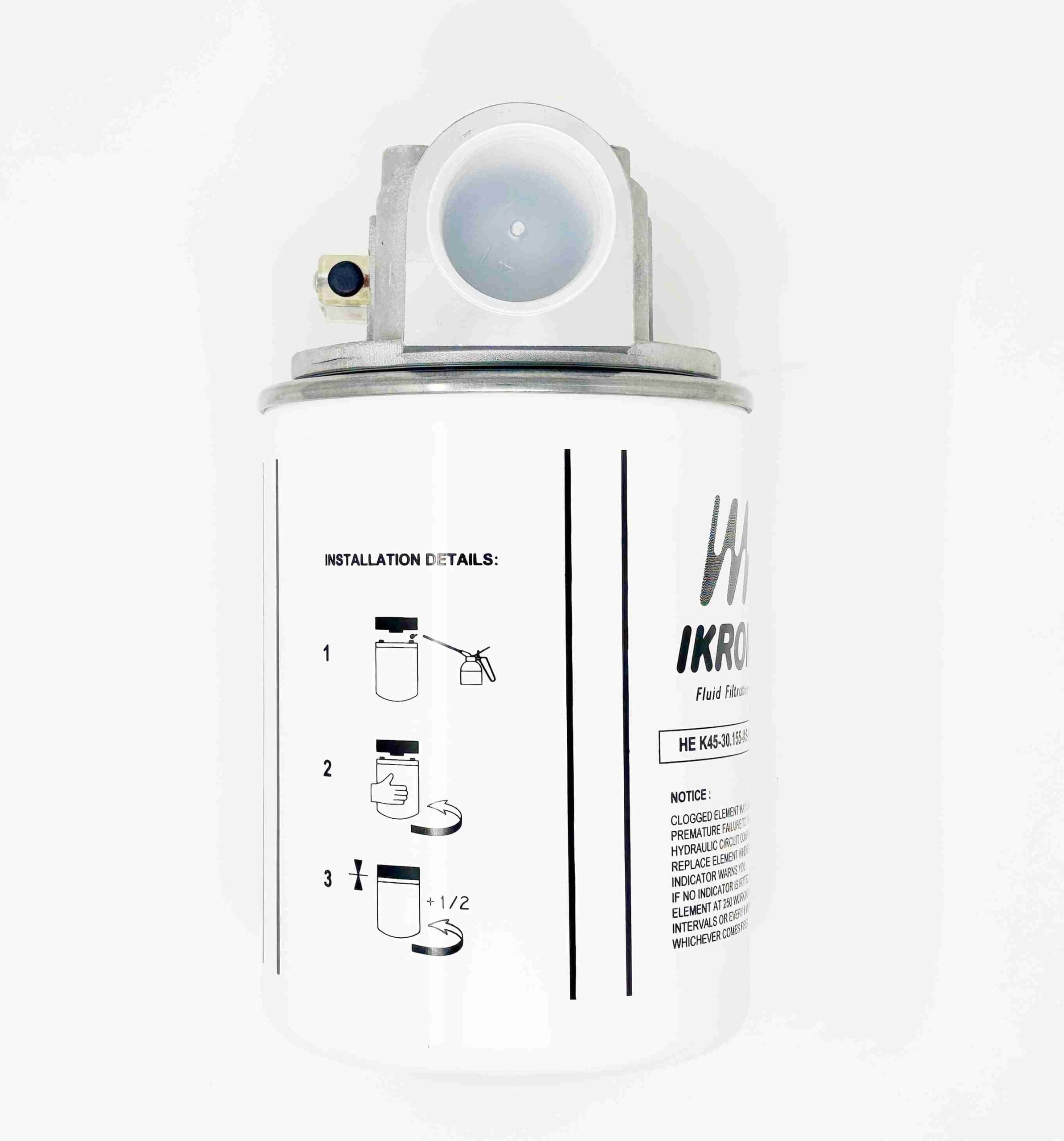

Hydraulic Oil Return Filter 25µm Blockage Indicator Bypass Valve 165L 1 ¼ BSP
All items featuring this logo carry a 12 month repair or replace guarantee. Subject to our standard terms and conditions of sale.£120.00 Exc VAT
3 in stock
At M W Truck Parts Ltd, we stand behind the quality of every part we supply. If, within the applicable warranty period, a part develops a fault due to a manufacturing defect or pre-existing fault, we will inspect the item and, where the warranty applies, repair or replace it with an equivalent product.
Please note that all warranty claims are subject to inspection and assessment. Warranty processing, repair or replacement times may vary depending on the product, manufacturer and circumstances of the claim.
In some cases, the full warranty process can take up to 12 weeks to complete, although we will always aim to resolve claims as quickly as reasonably possible. Please note all delivery times are estimated and not guaranteed.
Description
Hydraulic Oil Return Filter 25µm Blockage Indicator Bypass Valve 165L 1 ¼ BSP
- Filter Housing Model: HF 620 30-B17-X
- Working pressure 174 psi (12 bar)
- Testing pressure 232 psi (16 bar)
- Burst pressure 305 psi (21 bar)
- Micron: 25µm
- Connection 1 ¼” BSP
- Return line max flow 165 l/min
- Filter Type: Spin on canister with cellulose paper element (12 bar max pressure)

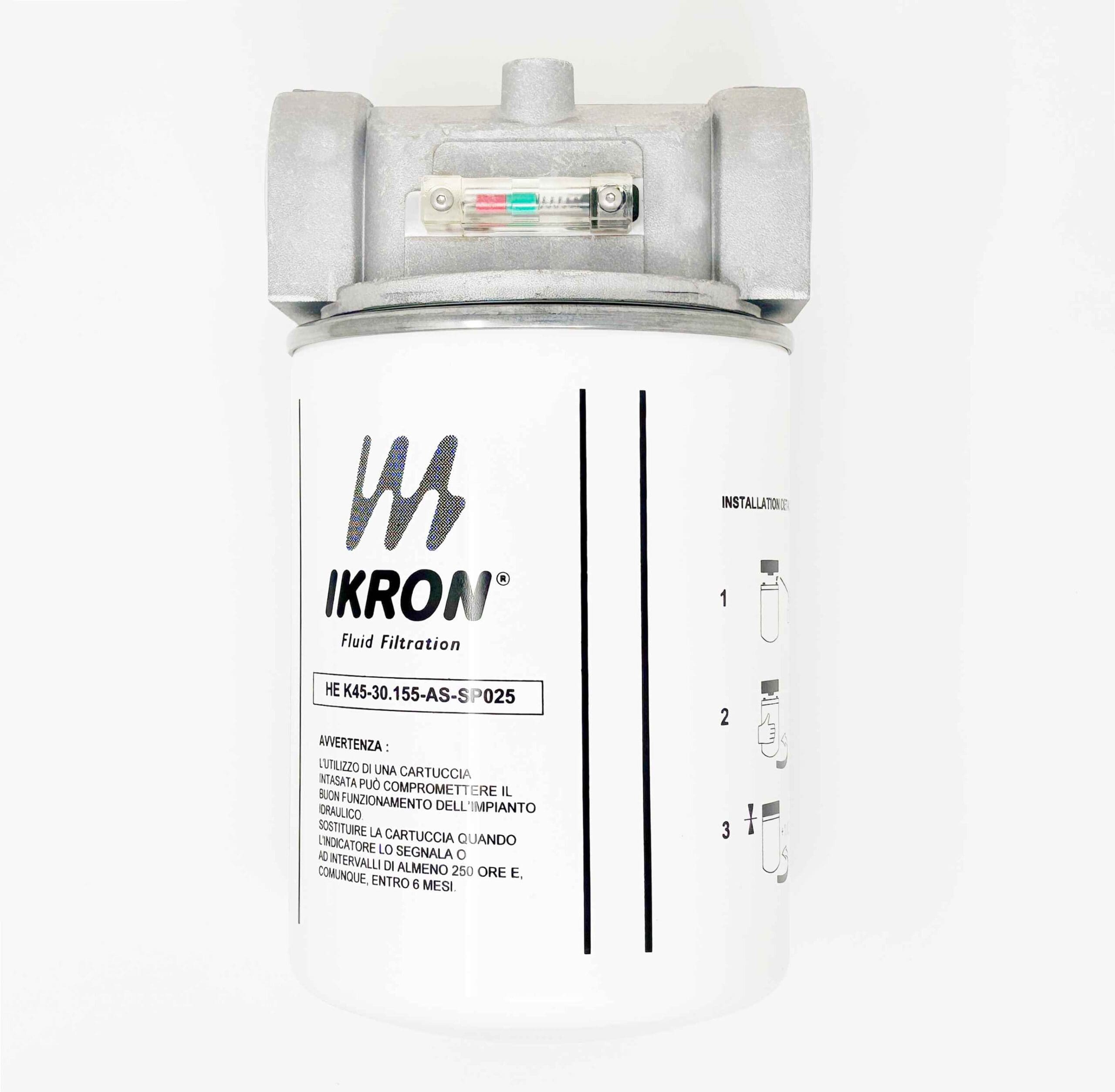

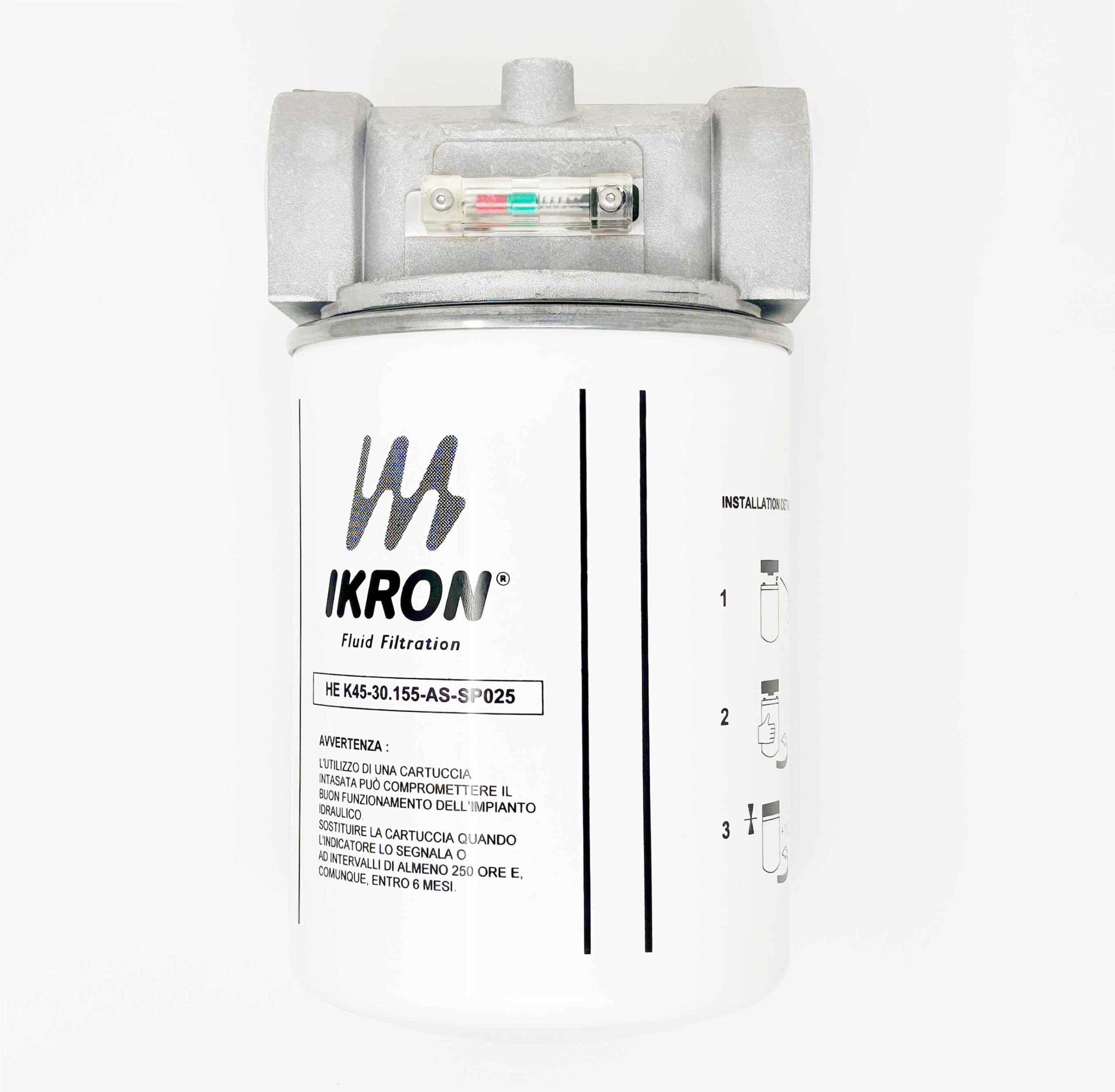

- Differential blockage indicator (pressure setting 1.5 bar)
- Differential bypass valve with (bypass pressure setting 1.7 bar)
THE IMPORTANCE OF AN EFFICIENT FILTRATION
The main cause of anomalies in hydraulic systems has to be attributed to the presence of contaminants in the fluid. The nature of the contaminant may be: gaseous, namely
air mixed with the fluid; fluid, it depends on water penetrating the fluid; solid, therefore particles of various origins and dimensions. Customers who operate equipment are always focused
on obtaining the best possible performance, lower energy consumptions and greater respect for the environment. These characteristics can be attained by using top
quality components in the hydraulic system, which are more sensitive to the presence of contaminants in the fluid.
Starting from these requirements, we understand how important and fundamental it is to prevent the presence of air and water from mixing in the fluid tank by using dedicated solutions.
It is also crucial to limit the presence of solid particles in the hydraulic circuit through a suitable filtering system, which is indispensable to maintain the project requirements of the system over time and to keep running costs low. The correct choice of a filter and its optimum position in the hydraulic system requires the same care and experience needed to choose all the other components. The use of filters with larger filtering surfaces reduces, at equal flow rates, the superficial contaminant load and therefore the filter’s life is extended proportionally.
To maintain the maximum efficiency of the system, the filters must have a clogging indicator showing the differential pressure on the filtering cartridge and to immediately point out when the cartridge needs replacing in order to prevent the by-pass valve from opening.
Additional information
| Weight | 3 kg |
|---|---|
| Dimensions | 34 × 32 × 35 cm |
