Hydraulic Monobloc Spool Control Valve 80L 6 Bank

Name: Hydraulic Monobloc Spool Control Valve 80L 6 Bank
SKU: HYCON-T-005
Availability: InStock

All items featuring this logo carry a 12 month repair or replace guarantee. Subject to our standard terms and conditions of sale.

£400.00 Exc VAT

SKU: HYCON-T-005

1 in stock

0000000165242

Product Views: 29177 Views

Description

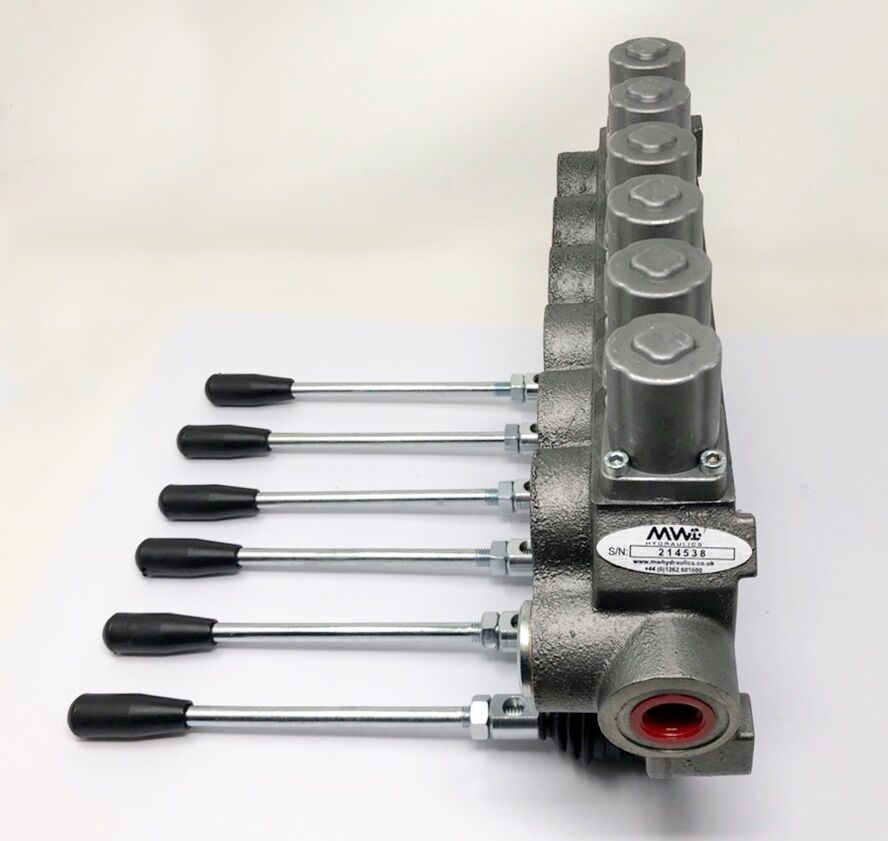

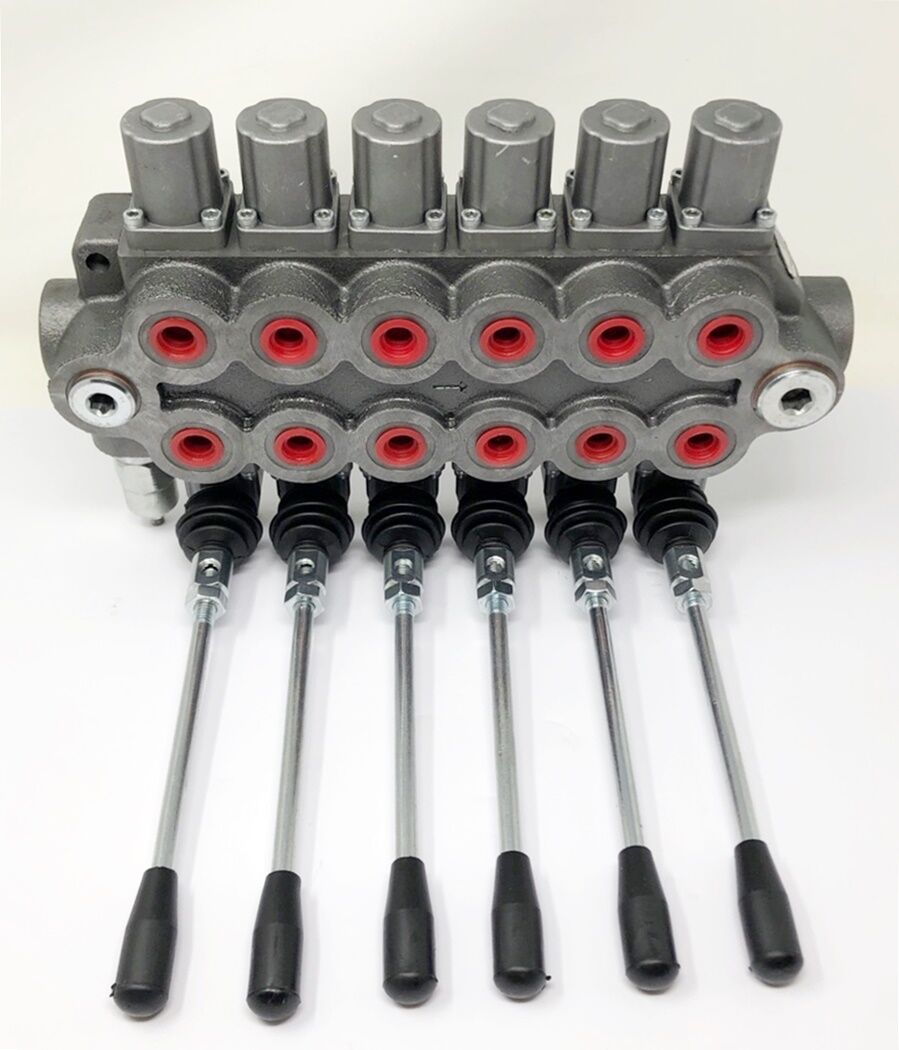

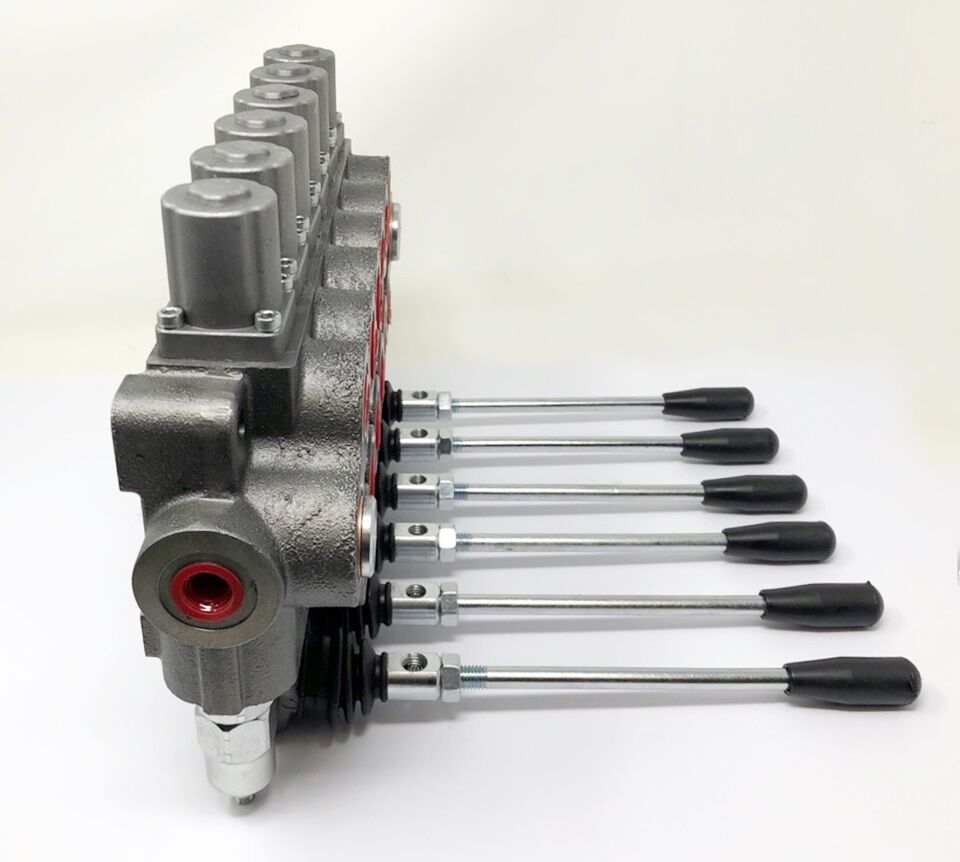

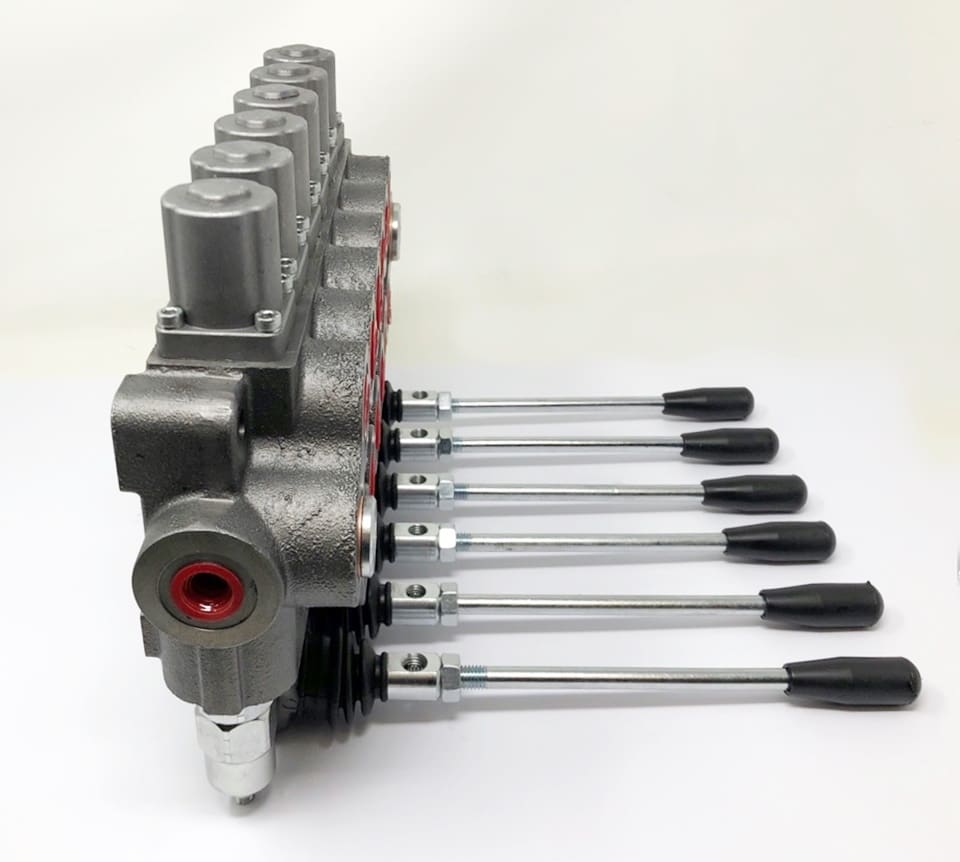

Hydraulic Monobloc Spool Control Valve 80L 6 Bank

Nominal Flow Rating / Displacement: 80 l/min
Maximum Working Pressure (Series Circuit): 315 Bar
Max. Back Pressure: 25 Bar
Port Thread Sizes:
Spool Block Ports to Cylinder: 1/2″ BSP
Spool Block to Pump: 1/2″ BSP
Spool Block to Tank: 3/4″ BSP
Fitted with a main pressure relief valve.
Simple, compact and heavy duty designed monobloc valves from 1 to 6 sections for open and closed centre hydraulic systems.

Weight	25 kg
Dimensions	42 × 36 × 37 cm
MPN	65108006040
Model	Hydraulic Monobloc Spool Control Valve 80L 6 Bank
Features	New
