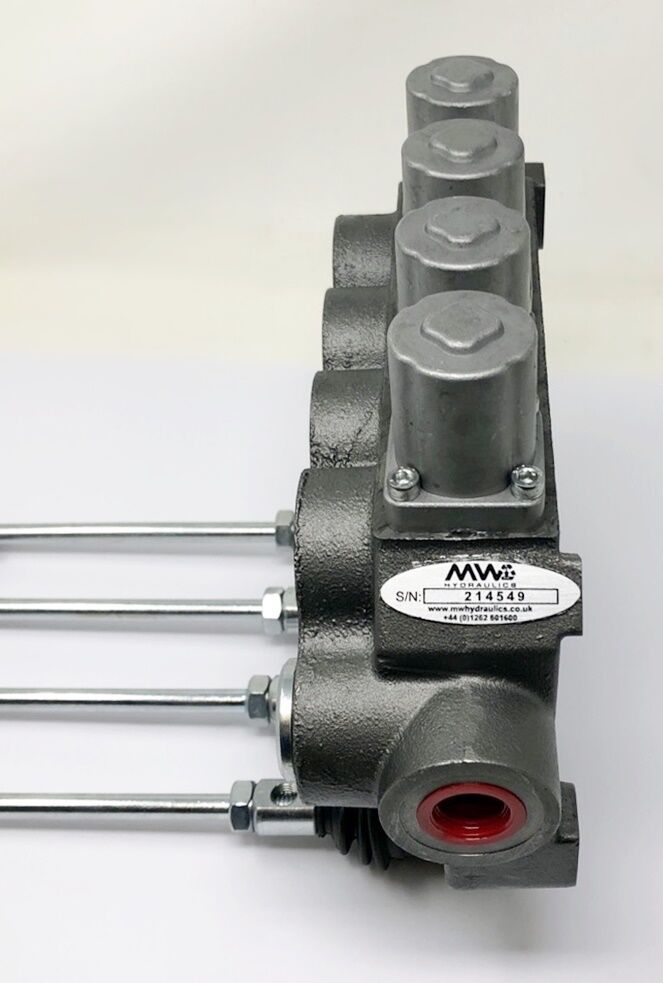

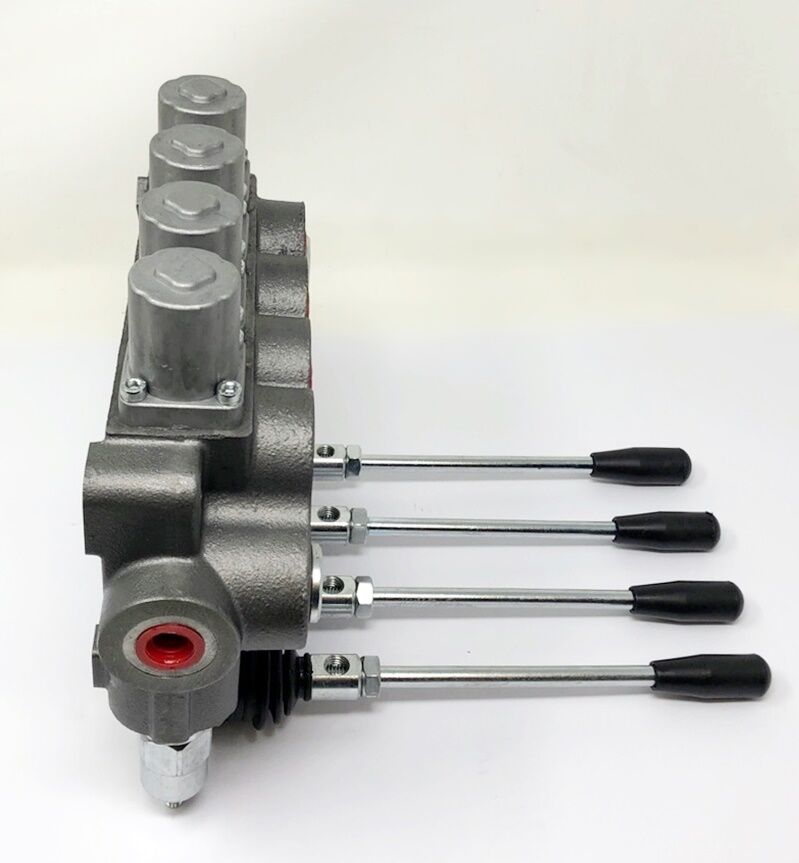

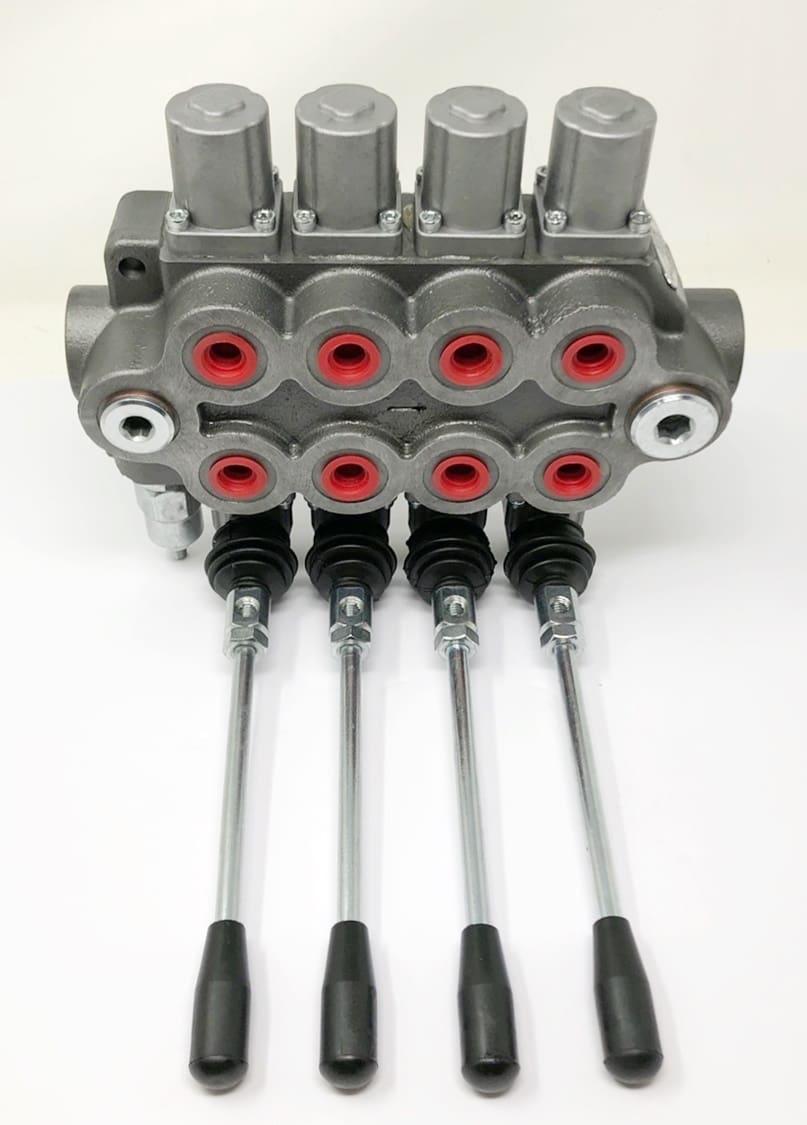

Hydraulic Monobloc Spool Control Valve 80L 4 Bank
All items featuring this logo carry a 12 month repair or replace guarantee. Subject to our standard terms and conditions of sale.£360.00 Includes 20% VAT
1 in stock
Product Views: 11170 Views
Description
Hydraulic Monobloc Spool Control Valve 80L 4 Bank
- Nominal Flow Rating / Displacement: 80 l/min
- Maximum Working Pressure (Series Circuit): 315 Bar
- Max. Back Pressure: 25 Bar
- Port Thread Sizes:
- Spool Block Ports to Cylinder: 1/2″ BSP
- Spool Block to Pump: 1/2″ BSP
- Spool Block to Tank: 3/4″ BSP
- Fitted with a main pressure relief valve.
- Simple, compact and heavy duty designed monobloc valves from 1 to 4 sections for open and closed centre hydraulic systems.
Additional information
| Weight | 21 kg |
|---|---|
| Dimensions | 42 × 36 × 37 cm |
| MPN | |
| Model | |
| Features |
