Directional Tipping Valve Pneumatic Operated 140L – 180 Bar (Tank Mountable)
£200.00 Exc VAT
18 in stock
Our Repair or Replace Promise
Compare
The M W Truck Parts Ltd Promise
At M W Truck Parts Ltd, we stand behind the quality of every part we supply. If, within the applicable warranty period, a part develops a fault due to a manufacturing defect or pre-existing fault, we will inspect the item and, where the warranty applies, repair or replace it with an equivalent product.
Please note that all warranty claims are subject to inspection and assessment. Repair or replacement times may vary depending on the product and manufacturer.
Please note all delivery times are estimated and not guaranteed.
Description

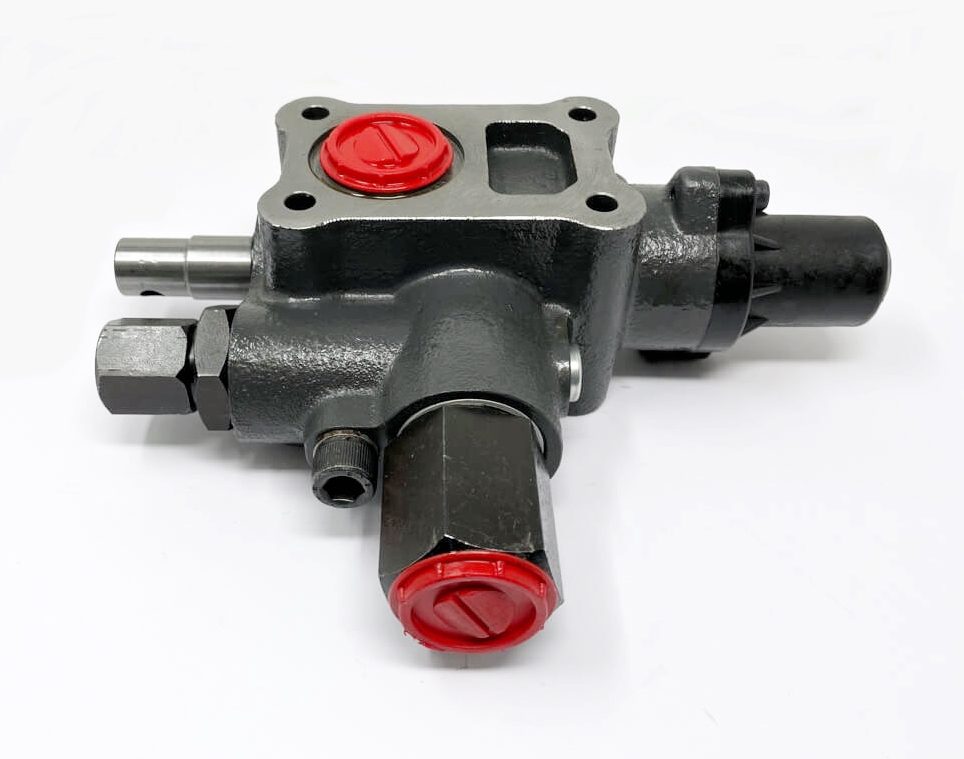

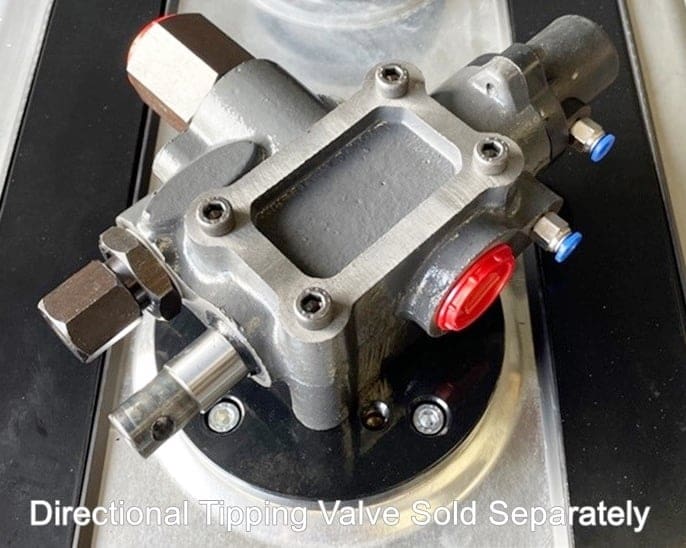

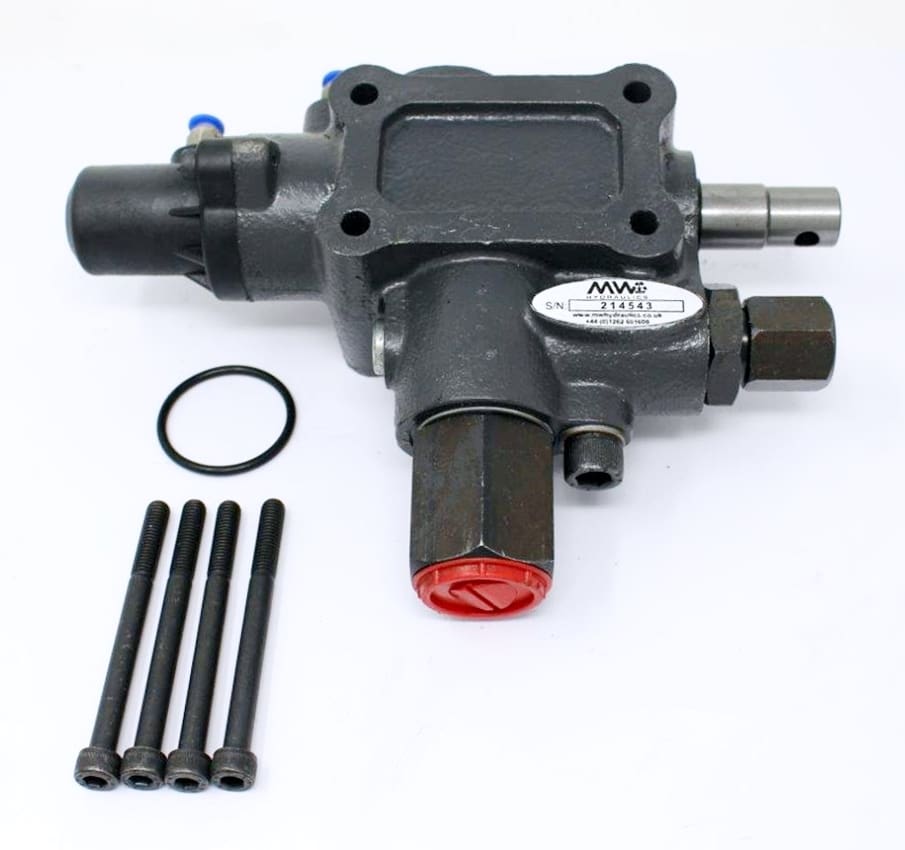

Directional Tipping Valve Pressure Regulator 1″ BSP (NC)
- Displacement: 140 L/1000 RPM
- Working Pressure: 170 BAR
- Maximum Pressure: 180 BAR
- Pump to Valve: 1″ BSP F
- Valve to Tank: 1″ BSP F
- Valve to Cylinders: 1″ BSP F
- Pressure Regulating Spool
- Back pressure protection check valve
- Normally Closed (NC) Fluid is shut off when de-energized, flows through the valve when energized
Additional information
| Weight | 9 kg |
|---|---|
| Dimensions | 34 × 32 × 35 cm |
| MPN | |
| Model | |
| Features |
