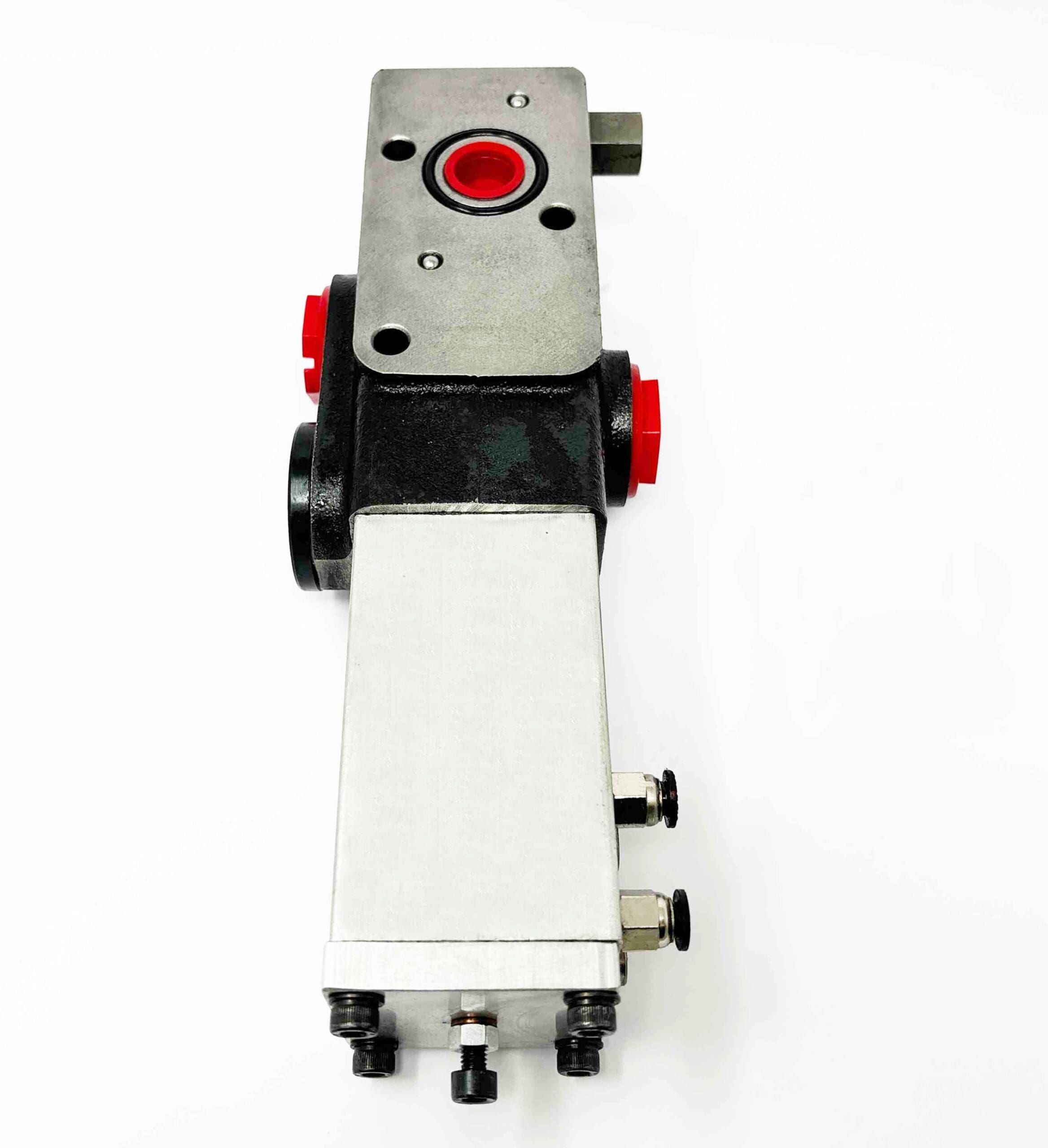

Directional Tipping Valve Pneumatic Operated 150L – 190 Bar

Description

Directional Tipping Valve Pneumatic Operated 150L – 190 Bar

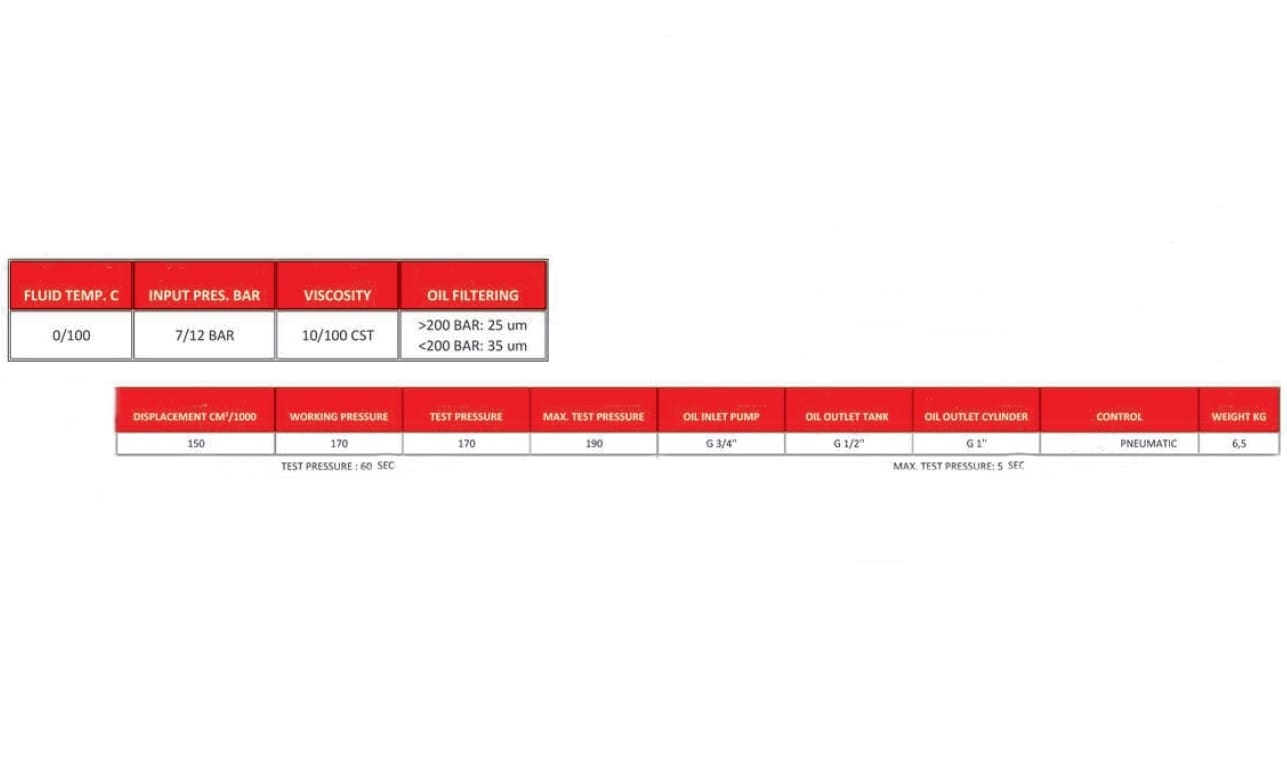

• Displacement: 150 L/1000 RPM
• Working Pressure: 170 BAR
• Maximum Pressure: 190 BAR

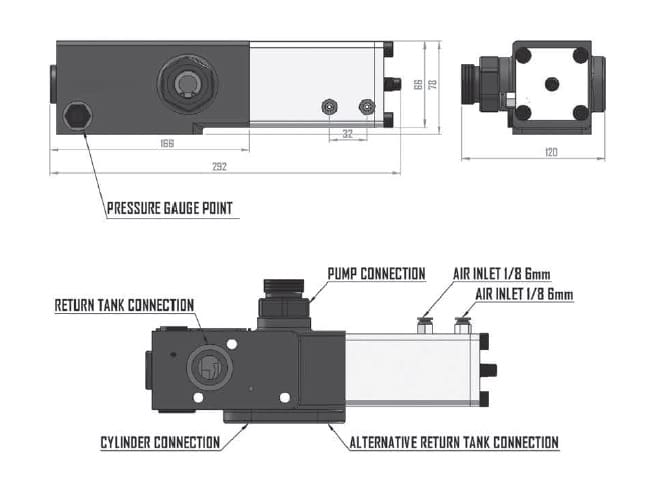

• Pump to Valve: 3/4″ BSP F
• Valve to Tank: 1/2″ BSP F
• Valve to Tank Alternative 1″ BSP F
• Valve to Cylinders: 1″ BSP F
• Pressure Regulating
• Back pressure protection check valve
• Normally Closed (NC) Fluid is shut off when de-energized, flows through the valve when energized
